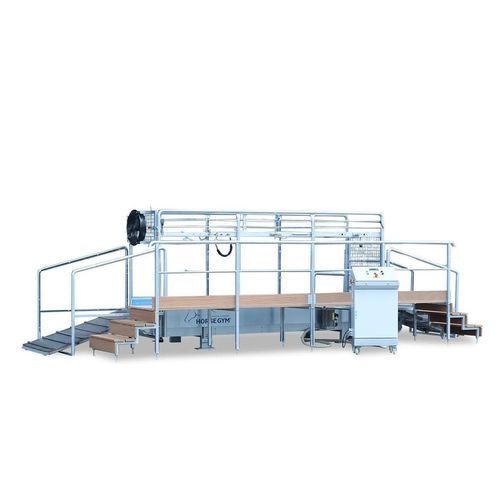

Dry veterinary treadmill R1

for horseswith non-slip surfacewith adjustable speed

Premium gallop treadmill for introducing horses to intensive training.

The Race Line is specially developed for performance-oriented gallop training and enables controlled, safe, and joint-friendly movement at top speeds. Ideal for improving endurance, strengthening muscles, and optimizing performance in a targeted way. Thanks to continuously adjustable speed and a variable incline of up to 10%, customized training plans can be created to optimally prepare horses for competitions or support them during rehabilitation.

Technology & benefits

• Dual speed controls: Separate adjustment of walk/trot and trot/gallop speeds for smooth transitions.
• Continuously adjustable speed: Up to 45 km/h for customized training.
• Variable incline: Up to 10% for targeted muscle building and conditioning (higher incline available).
• Grass/forest-floor technology: Maximum comfort and joint-friendly running experience.
• Maximum safety: 3-point safety system: light barrier, shock sensor & emergency stop.
• Shatterproof makrolon side panels: For 360° gait observation & improved user comfort.
• E-Drive technology: Speed-regulated drive for quiet and energy-efficient operation.
• Digital control unit: Multiple program options for individually adjustable training.
• Automated belt lubrication: For minimal maintenance.
• Space-saving, modern design: Ideal for everyday stable use and rehab facilities.
• High-quality materials & manufacturing: Made in Germany.

Race Line use cases
The Race Line is suited for racehorses, show jumpers, and sport horses that need to be specifically prepared for peak performance. It combines cutting-edge safety technology, maximum speed, and ergonomic training in one system.

Optional add-ons

• Safety grid at the front and rear – additional protection for the horse during training.
• Observation stand – optimal position for gait analysis.
• Safety harness – additional safety for the horse.
• Single or dual ventilator – customizable ventilation for extra comfort.

Technical specifications
Length: 7,100 mm (incl. ramps)
Required space (length): 11,000 mm
Width: 1,680 mm (incl. control unit)
Required space (width): 2,200 mm
Height: 2,000 mm
Required space (height): 3,000 mm
Running surface width: 800 mm
Weight: 2,400 kg
Recommended max load: 900 kg
Speed: 0-45 km/h
Noise level: 60 dB (without horse)
Power supply: 11 kW / 380 V

Technical specifications (summary)

• Length: 7,100 mm (incl. ramps); required space 11,000 mm
• Width: 1,680 mm (incl. control unit); required space 2,200 mm
• Height: 2,000 mm; required space 3,000 mm
• Running surface width: 800 mm
• Weight: 2,400 kg
• Recommended max load: 900 kg
• Speed range: 0-45 km/h
• Noise level: 60 dB (measured without horse)
• Power supply: 11 kW / 380 V
