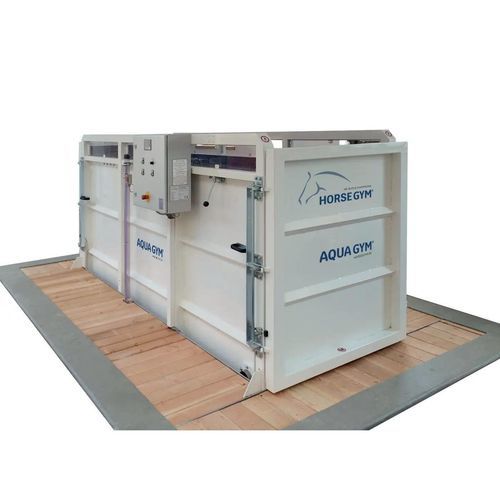

Underwater veterinary treadmill Aqua Basic

hydrotherapyfor horsesprogressive start

Overview
The Aqua Line was developed for rehabilitation, regeneration and training preparation of horses. Water training reduces joint and tendon load while actively promoting muscle engagement and blood circulation. Maximum speed up to 16 km/h (Aqua Basic Sport), water height up to 1 m.

Hydrotherapy
Hydrostatic pressure and water resistance stimulate circulation, reduce swelling and support strength and conditioning development. Water work mobilizes the horse’s back and hindquarters because the animal must actively use its entire body, naturally lifting and strengthening the back.

Technology & benefits

• Joint-friendly training: Water buoyancy reduces load on the musculoskeletal system for gentle yet effective exercise.
• Muscle development & endurance: Water resistance offers an adjustable, uniform resistance to build muscle and stamina.
• Hydrostatic pressure: Promotes blood flow and reduces swelling, especially valuable in rehabilitation.
• Automated training programs: Configurable programs with adjustable speed and water level for individualized therapy.
• Stainless steel construction: High-quality stainless steel for corrosion resistance and long service life.
• Safety systems: 3-point safety including light barrier, shock sensor and emergency stop, plus smooth speed transitions.
• E-Drive technology: Speed-regulated drive for quiet, energy-efficient operation.
• High-quality particle filter: Maintains water cleanliness with low maintenance (filter optional on request).

Available Models

• Aqua Basic
• Aqua Basic Sport

Technical data
Length
6,600 mm (incl. ramps)
11,000 mm (required space)

Width
2,300 mm (incl. control unit)
2,500 mm (required space)

Height
2,000 mm
3,000 mm (required space)

Running surface width
800 mm

Additional technical space required
20 m²

Weight
2,200 kg

Recommended max load
900 kg

Speed
Basic: 0-10 km/h
Basic Sport: 0-16 km/h

Power supply
Basic: 4 kW / 380 V
Basic Sport: 5.5 kW / 380 V

Characteristics / technical specifications

• Purpose: rehabilitation, regeneration and training preparation for horses
• Max water height: up to 1 meter
• Max speed (Aqua Basic Sport): up to 16 km/h
• Automated, adjustable training programs (speed and water level)
• 3-point safety: light barrier, shock sensor, emergency stop
• Construction: high-quality stainless steel (corrosion resistant)
• Drive: E-Drive speed-regulated for quiet, energy-efficient operation
• Optional high-quality particle filtration (ensures high water quality)
• Optional accessories: water cooling (4–5 °C with tank insulation), safety glass (Makrolon), custom colour (RAL/polished stainless), SPA functions (saltwater, cooling, whirlpool), observation platform
