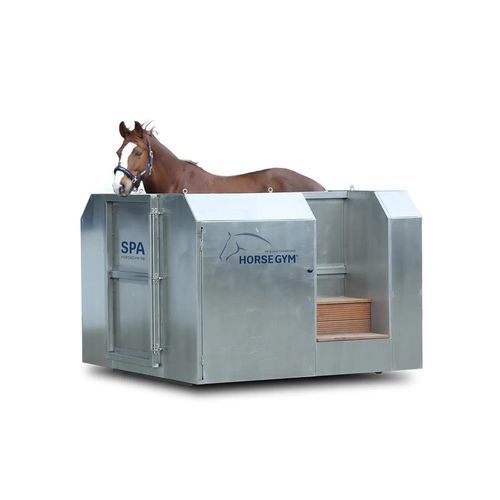

Equine veterinary spa Hydro Line

for horses

Overview
The Hydro Line Equine Spa is a 2,500-liter cold saltwater hydrotherapy unit designed for sport and rehabilitation horses. Combining controlled cold therapy with saline solution, it targets inflammation, supports pain relief, improves circulation and promotes healing of tendon, ligament and hoof conditions. The system provides a drug-free treatment to reduce swelling, restore mobility and accelerate recovery after competition or intensive training.

Applications & benefits

• Injury prevention – reduces risk of overuse and limb inflammation
• Improved mobility – supports joint and ligament function
• Tendon and ligament treatment – accelerates tissue regeneration after intense exertion
• Swelling reduction – effective before and after competitions or heavy training
• Pain and inflammation relief – aids healing of wounds and hoof problems
• Enhanced circulation – stimulates cellular metabolism and tissue repair
• Activation of deep muscle layers – engages rarely used muscle groups

Technology & features

• Cold hydrotherapy with saltwater – standard temperature range 2–4°C for maximum therapeutic effect; adjustable up to 28°C
• Insulated 2,500-liter tank – maintains stable water temperature and improves energy efficiency
• Anti-slip flooring – engineered for horse safety during entry and treatment
• Marine-grade V4A stainless-steel construction – corrosion-resistant, durable and hygienic
• Bacteria-resistant water management – integrated filtration and hygiene control
• User-friendly control panel – straightforward interface for treatment settings
• Easy cleaning and maintenance – designed for minimal downtime
• Optional shatterproof glass door panels – unrestricted visibility during therapy

Specifications

• Maximum water height: 1.0 m
• Filling time: approx. 1.5 minutes to reach maximum level
• Water temperature: 2–4°C (standard) or up to 28°C (adjustable)
• Ventilation/circulation: 24-jet system to promote uniform water flow
• Tank capacity: 2,500 L with integrated filtration
• Optional features: shatterproof glass panels, customized access ramps

Technical data

• Footprint length: 2,500 mm (required space: 6,500 mm)
• Footprint width: 2,350 mm (required space: 3,500 mm)
• Footprint height: 1,550 mm (required space: 2,500 mm)
• Weight: 2,500 kg
• Recommended maximum load: 900 kg
• Power supply: 0.5 kW / 380 V
• Certifications: CE/TÜV (where applicable), manufactured in Germany
