Hermetic door HOSPITAL60 – PSTE60

shieldedair-tightx-ray protection

Product name

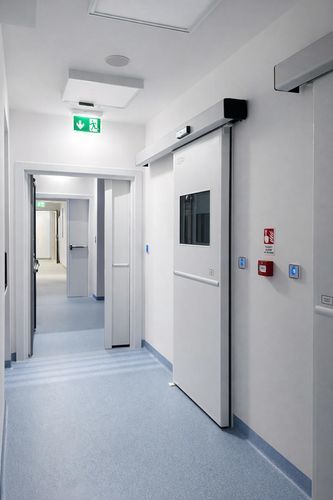

HOSPITAL60 hermetic sliding door (series 60 / PSTE60, PSATE60, PSAMTE60)

Overview
Hermetic sliding door engineered for operating rooms and other critical medical areas where airtight sealing, controlled pressure and sterility are required. Available as stainless steel or aluminium/HPL variants. Design, production and installation services are provided.

Key messages

• Designed for clinical environments requiring strict contamination and pressure control.
• Available documentation and series references to support specification and installation.
• Design, production and installation service scope included.

Applications

• Operating rooms and surgical suites
• Intensive care units (ICU)
• Cleanrooms and sterile preparation zones
• Radiology and imaging rooms (RX lead-shielded option)
• Laboratories and other controlled high‑risk areas

Materials and variants

• Stainless steel construction
• Aluminium frame (series 60) with HPL laminated finishes (PSATE60 / PSAMTE60)
• Integrated glazed vision panels (oculus)
• Lead-lined RX variant available on request for radiological protection

Related product types

• Sliding airtight doors
• Sealed swing doors
• Simple sealing doors
• Service doors
• Lead-lined doors

Documentation available
Specification items and technical datasheets are available for the aluminium series 60 and related models (PSTE60, PSATE60, PSAMTE60). Detailed product datasheets and installation guidance can be provided on request.

Characteristics / technical specifications

• Type: hermetic/airtight sliding door for medical critical areas
• Profile/series: HOSPITAL60 (series 60 references PSTE60, PSATE60, PSAMTE60)
• Sealing: dedicated gasket profiles for airtight closure to prevent air and particle transfer
• Drive: brushless motor (warranty via partner FACE) — low noise, reliable operation and reduced energy consumption (approx. 54% less vs. typical competitors)
• Door leaf: stainless steel or aluminium/HPL options, pressure-resistant design
• Safety: integrated radar and proximity sensors for contactless opening
• RX option: lead shielding for X‑ray protection available on request
• Services: design, production and installation included in scope

Ordering and options
Custom finishes and dimensions available. RX lead shielding, aluminium/HPL variants and additional equipment can be specified on request. Installation and configuration conform to applicable European medical and hygiene standards.
