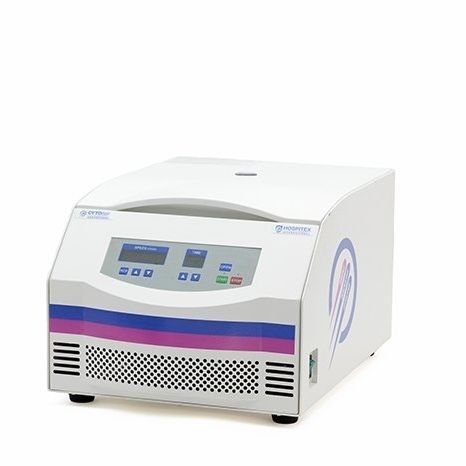

Cytocentrifuge complete with 6-positions rotor dedicated to the centrifugation of special slide holder devices set-up with the CYTOfast systems.
CYTOfast CytoCentrifuge is optimized to achieve a perfect thin layer cells deposition on the slide. The cell deposition on the slide takes place by a gentle centrifugation, in order to ensure a perfect cellular elements adhesion on the slide and the maintenance of their morphology. The tilting rotor, specifically designed for this kind of application, allows an optimal deposition of the cells on the slide and their homogeneous distribution throughout the area of the 17-mm-diameter circular spot.
INSTRUMENT SPECIFIC INFORMATION
Max volume: 6 x 9 ml
Rotation angle: 90 °
Max speed: 4000 RPM
Max RCF: 2150 Å~ g
Rotation time: 0 – 99 minutes
Control/Alarm system: Acoustic alarm at the end of the cycle
Process interruption: “STOP” button to interrupt the process
Manufacturer: Hospitex International S.r.l.
GENERAL INSTRUMENT INFORMATION
Power supply: AC 230V 50Hz
Energy consumption: 100 W
Noise: < 55 dB
Dimensions: 370 (w) x 500 (d) x 290 (h) mm
Weight: 30 Kg
