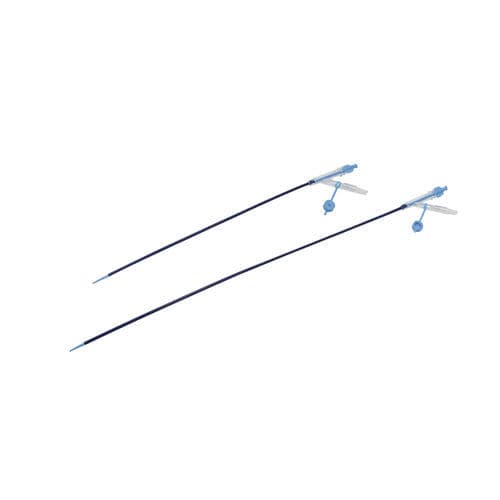

Ureteral access sheath Single-use Ureteral Access Sheath

renalatraumatichydrophilic

Overview
HugeMed Single-use Ureteral Access Sheath is a disposable device intended for use with a ureteroscope (URS) during retrograde intrarenal surgery (RIRS). It creates a flexible, stable pathway in complex urinary anatomy to facilitate repeated instrument insertion. Clinically, it broadens indications, improves single-session stone-free rate (SFR), shortens operative time, reduces intrarenal pressure and temperature, and enhances visualization and irrigation efficiency.

Slimmer for Smoother Access
Specifications: available in working lengths of 40, 45, 50 and 55 cm and diameter options 8.5/10.5, 9/11, 10/12, 11/13 and 12/14 Fr, offering 20 flexible combinations that cover ultra-slim access through to general negative-pressure aspiration applications.

Clinical recommendations
For conventional non-suction UAS, the recommended safety rule is RESD ≤ 0.75. With active suction improving outflow and intrarenal pressure control, this Single-use Ureteral Access Sheath supports use up to RESD ≤ 0.85. Notably, the combination of HugeMed's 6.3/3.6Fr URS and the 8.5/10.5Fr Single-use Ureteral Access Sheath achieves RESD = 0.741, forming a Slim Combo that increases access success and reaches narrower, deeper calyces for challenging stones.

Design details that boost operation efficiency

• Slider valve for precise suction control, enabling effective intrarenal pressure management while maintaining efficiency
• High-elastic soft silicone case compatible with HugeMed flexible ureteroscopes
• Beveled edge and tapered dilator tip design to minimize insertion trauma
• Stainless-steel flat coil reinforced shaft balancing flexibility and structural strength
• Hydrophilic coating with depth mark for smoother insertion and precise positioning

Technical characteristics / specifications

• Product type: Single-use Ureteral Access Sheath
• Intended use: Used with a ureteroscope (URS) for retrograde intrarenal surgery (RIRS)
• Working lengths: 40 cm, 45 cm, 50 cm, 55 cm
• Diameter options (Fr): 8.5/10.5, 9/11, 10/12, 11/13, 12/14 (20 combinations)
• Suction: active suction capability to improve outflow and intrarenal pressure control
• Recommended RESD (traditional non-suction UAS): ≤ 0.75
• Permitted RESD with this suction UAS: up to ≤ 0.85
• Example Slim Combo performance: 6.3/3.6Fr URS + 8.5/10.5Fr UAS → RESD = 0.741
• Key components: slider valve, soft silicone case, beveled edge, tapered dilator tip, stainless-steel flat coil reinforced shaft, hydrophilic coating with depth mark
• Compatibility: designed for compatibility with HugeMed flexible ureteroscopes
• Clinical benefits: facilitates multiple instrument entries, broadens indications, improves single-session SFR, shortens operative time, lowers intrarenal pressure and temperature, enhances visualization and irrigation efficiency
