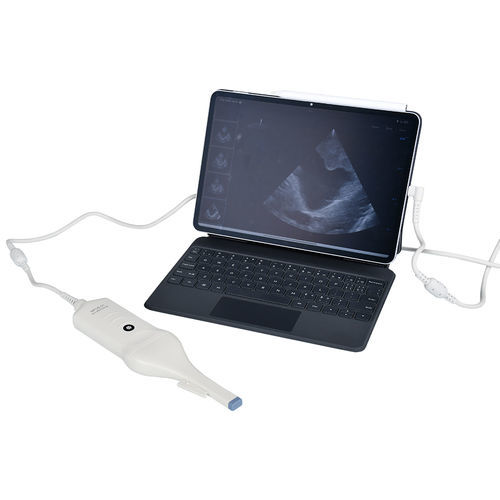

Hand-held ultrasound system NPUS-01

for cardiovascular ultrasound imagingspectral dopplerB/W

Product overview
The NPUS-01 is a portable handheld ultrasound scanner providing B-mode, M-mode and Doppler imaging for point-of-care vascular and basic cardiac assessments.

Key specifications

• Length: ≤244 mm
• Width: ≤60 mm
• Thickness: ≤25 mm
• Weight: ≤160 g
• Imaging modes: Universal B-mode, M-mode, Doppler

Imaging modes & automatic measurements

• B-mode: Distance (line), Area (ellipse), Intima-media thickness, MT (rectangle), Angle (between two lines), Volume (Line 1, Line 2, Line 3), A/B ratio (length, perimeter or area)
• M-mode: Speed (line), Heart rate (line)
• Doppler mode: Speed (point), Heart rate (line), Acceleration (line), PS/ED (five endpoints)
• Real-time Doppler automatic calculations: PSV (peak systolic velocity), EDV (end-diastolic velocity), MD (minimum end-diastolic velocity), PI (pulsatility index), RI (resistance index), HR (heart rate)

Vascular measurements

• Diameter measurement

Applications

• Point-of-care vascular assessment, basic cardiac evaluation, peripheral vessel imaging and bedside monitoring
