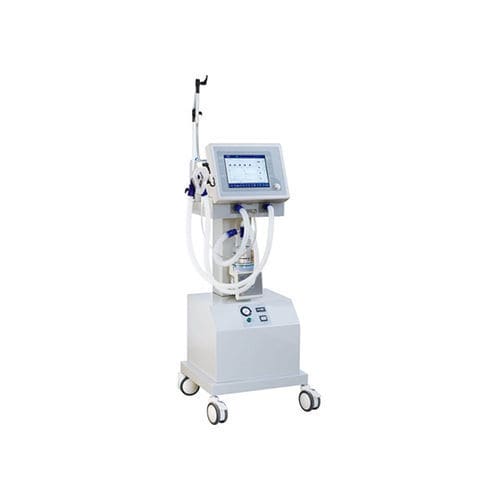

Clinical ventilator PA-900B ADV
electronicCPAPSIMV

clinical ventilator
clinical ventilator
Add to favorites
Compare this product


Characteristics

Applications
clinical
Type
electronic
Ventilation mode
CPAP, SIMV
Configuration
on casters
Tidal volume

Max.: 2,000 ml
(67.6 US fl oz)

Min.: 0 ml
(0 US fl oz)

Description

● Display: 10.4 inch high visibility color TFT display ● Minute Volume: Greater than or equal to 18L ● Back~up Power Supply: At least 4 hours ● Respiratory Rate: 1~99bpm ● Inspiratory/expiratory (I:E) ratio: 4:1~1:4 ● PEEP: 0~10cmH2O ● SIMV Rate: 1~20bpm ● Inspiratory Pressure Trigger: ~10~10cmH2O ● Trigger Sensitivity (flow): 1~10L/m ● Inspiratory Plateau: Adjustable from 0~50% of inspiratory time ● Adjustable Oxygen Concentration: 21~100% ● Gas Supply Requirement: 280~600 kPa medical grade oxygen and compressed air supply ● Pressure Limit: 1.0kPa~6.0kPa ● Maximum Safe Operating Pressure:≤6.0kPa ● Airway Pressure Alarm:Upper Limit: 0.1~6kPa, Lower Limit: 0~5kPa ● Oxygen Concentration Alarm:Upper Limit: 22~100%, Lower Limit: 21~80% ● Air compressor PN~3000
