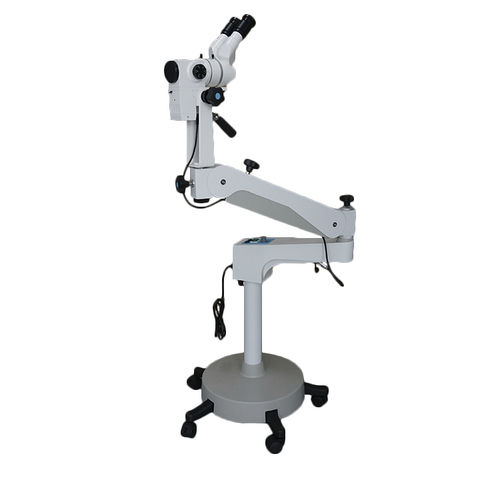

Binocular colposcope Colpo-F10

trolley-mounted

MICROSCOPE Binoculars - Straight f’=160 mm Objective: f’=300 mm Eyepiece: 12.5x, high-eyepoint, wide angular, pupil exit distance 21mm Diopter adjustment: -5D to + 5D Magnification changer: 5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x Total magnifications: 2.8x,4x,7x,11.5x, 17x Visual field: 80 mm-12.5 mm Interpupillary distance: 55 mm to 75 mm Focusing: Micro-range of 40mm Manual Working distance: 295 mm ILLUMINATION Type: Coaxial illumination by optical light-guide system Cold light source: LED lamp, 3V/10W Illumination control: 3steps Field of illumination: 65 mm Power supply: AC 90V-240V Light intensity: 30000 LUX Filter: Green ARM, STAND Type: Pantographic arm, floor stand 1040mm Rotation angle: 270° Elevation stroke: 350 mm Height: 1000-1350 mm Base size: 600mm Weight: 38kgs ACCESSORIES Binoculars: 45° inclined binoculars f’=125 mm Objective: f’=250mm,400mm Beam splitter: Dismountable Adaptor for CCD: With iris diaphragm, f’=65 mm NOTE:Specifications subject to change without notice
