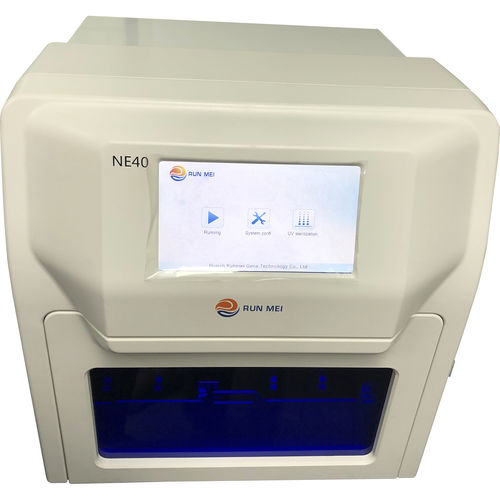

Clinical diagnostic nucleic acid extractor NE40

with touchscreen

1. With a unique heating system, it can heat up to 60°C in 30 seconds and rise to 90℃ in 1 minute. Minimize sample processing latency and much efficient. 2. Unique reagent slot extract volume to 20ul, enhance the extraction performance with high concentration. 3. Avoid cross contamination by airosol with Low speed mix system Unique wide-cabinet chamber design eliminates cross-contamination. 4. UV lamp disinfection to effectively prevent. Technical Parameter of Automatic Nucleic Acid Extraction System : Temperature Control System： - The system is fully intelligent and humanized design, the instrument comes with heating, cooling, constant temperature control functions Number of samples： - 1-48 samples Sample capacity： - 20-1000μL Sample types： - Whole blood, serum, plasma, puncture fluid, thoat swab, genital etc. Nucleic acid extraction method： - Automatic magnetic bead Magnetic bead recovery： - >95% Magnetic steel bar : - 48 Extraction Sensitivity： - Postive rate 95% 101U/ml CV of well : - CV<5% Pyrolysis temperature： - 25~90℃ Eluting temperature： - 25~90℃ Operation interface： - 7 inch high resolution color touch screen Internal software : - 16 model (stored more than 100 software) Software management : - Can be stored and customized Extension port : - RS232 Sterization : - UV light internal VENTING : - Fans Power： - AC 110-220V，50/60Hz Volume： - 490mm* 467mm* 453mm Certification: CE
