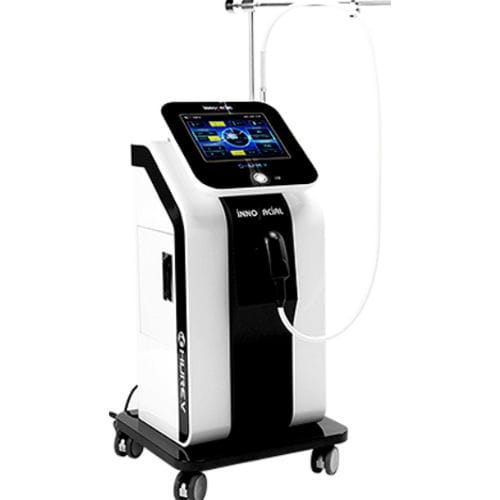

Microdermabrasion unit INNOFACIAL CD700+

mechanical exfoliation unit

Overview
The INNOFACIAL treatment is an advanced non-laser skin resurfacing procedure combining cleansing, exfoliation, extraction, hydration and antioxidant protection in a single session. It is non-invasive, soothing and requires no downtime, suitable for clinical aesthetic use.

Product name
INNOFACIAL CD700+ — Dual Aqua Peeling System with step-by-step pressure control, digital peeling settings, one-step cleaning, full touch screen and record saving function.

Technology
Rotating handpiece
The rotating handpiece provides hybrid dermabrasion combining chemical and physical peeling. A fast-rotating abrasive tip with controlled vacuum allows effective surface peeling with minimal discomfort and enhances penetration of solutions via a gentle massage effect.

Tornado handpiece
The Tornado handpiece performs hydradermabrasion using a specially designed swirling tip and strong suction to enable simultaneous cleansing, exfoliation, extraction and hydration without downtime.

Clinic solution

• IS1 water-soluble formula mainly containing Alpha-Hydroxy Acid (AHA) for desquamation of dead skin cells.
• IS2 oil-soluble formula mainly containing Salicylic Acid (BHA) to remove impurities; particularly effective on oily skin and T-zone.
• IS3 enriched hydro-essence delivering hydration, vitamin B and antioxidant effects to restore elasticity after IS1 and IS2.
• CLN cleaning solution for internal device maintenance; removes residues from IS1, IS2 and IS3 to preserve hygiene.

Advantages

• 10.4 inch color touch LCD
• 6-level suction pressure adjustment
• 10-level solution flow rate control
• Patient treatment time management
• User manual saving function
• One-touch automatic cleaning system
• Reduced operational noise
• Ergonomic and easy-to-operate interface

Clinical studies
Clinical evaluation report available for INNOFACIAL.

Specifications

• Tornado tip: Large, Small
• Control panel: 10.4 inch color touch LCD
• Power consumption: 500 VA (Maximum)
• Box dimensions: 530 mm [W] * 540 mm [D] * 1,050 mm [H]
• Vacuum pressure: 250~700 mmHg
• Cooling system: Air circulation
• Device dimensions: 430 mm [W] * 440 mm [D] * 880 mm [H]
• Gross weight: approx. 38 kgs
• Noise level: 80 dB
• Power: AC 220-240 V, 50-60 Hz
• Net weight: approx. 33.6 kgs
