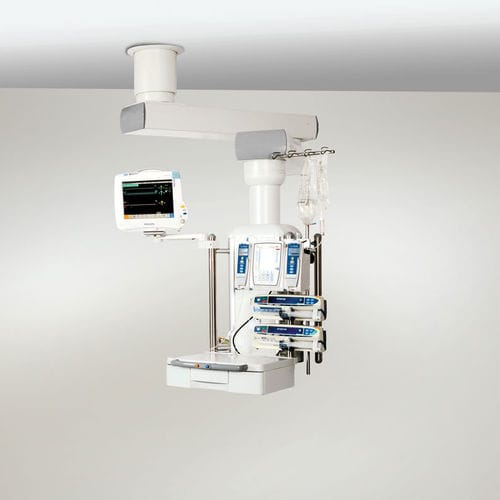

Ceiling-mounted medical pendant HU6-S2

intensive carearticulated

HU6-S2-01 Pendant Service System (Ceiling mounted) DESCRIPTION The HU6-S2-01 is a ceiling mounted pendant service system utilized within the operating theatre environment. AREAS OF USE: Operating Theatres DESIGN: The HU6-S2-01 is a ceiling pendant solution to provide Supply Services to the surgeon and anesthetist within the operating theatre environment; The design comprises a dual arm articulated with a single vertical service column; The active pneumatic brake system operated on the articulated arm and service column can be rotated within 320 degrees to position the Supply Services ergonomically; The design provides unobstructed access around the operating area; 4 x Ø38mm equipment poles are integrated on each corner of the service column to support medical equipment (*see Attachment range to suit the medical equipment); SERVICES: The moveable dual articulated arm service column provides for low voltage (LV), extra low voltage (ELV) and selected medical gases (MG); The product can accommodate various types of electrical and medical gas outlets, fitted to suit the clients’ specifications; All four sides of the service column are populated with Supply Services to support medical equipment; PAYLOAD: Dual articulated arm service column: <250kg INSTALLATION: The unit is flat slab mounted*, where Supply Services are terminated in the ceiling void; The unit is supplied with mounting structure and specialised anchors to suit site requirements; Installation to be provided by qualified Hutz Medical installation engineers; NORMS & CERTIFICATIONS: IEC 60601-1 IEC 60601-2 ISO 11197
