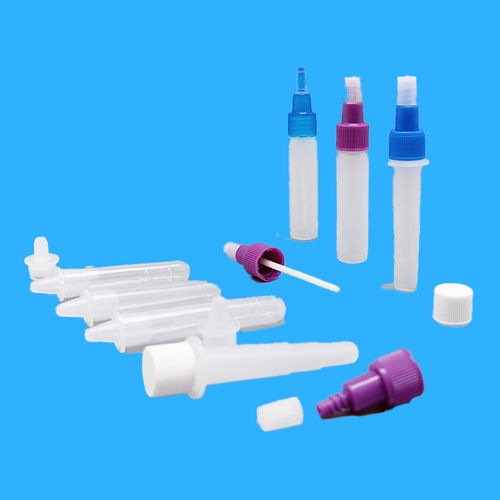

Microtube for life sciences applications 930001

for researchfor DNA purificationdiagnostic

Product overview
An extraction tube is a laboratory consumable for liquid extraction and transfer in analytical and biochemical workflows. It enables the separation of dissolved compounds by adding a solvent and draining it through the lower outlet. Typical uses include organic chemistry, biochemistry and handling of diagnostic reagents such as nucleic acid and antigen tests.

Materials and features
The tube is suitable for ordinary and viscous liquids and can be fitted with a filter element. Main components: PP/PS emitter and PE dropper; filter element made of nylon. Typical application areas: industrial chemistry, environmental analysis, biochemistry, nucleic acid and antigen detection reagents, buffer solution transfer. Product characteristics include reliable sealing, single-material production and low volume variation.

Product variants (table)
Product number | Product name | Capacity | Height | Diameter | Packing Size
930001 | Traction tube - A (PE tube PS dropper) | 0-2 ml | 62 mm | 12.3 mm | 1000 pcs/bag; 10000 pcs/box
930021 | Extraction tube - A1 (PE tube PS dropper with filter element) | 0-2 ml | 62 mm | 12.3 mm | 1000 pcs/bag; 10000 pcs/box
931001 | Extraction tube - B (PE double cap) | 0-2 ml | 50 mm | 9.5 mm | 1000 pcs/bag; 10000 pcs/box
932001 | Extraction pipe-c (PE single cap) | 0-2 ml | 39.5 mm | 10 mm | 1000 pcs/bag; 10000 pcs/box
933001 | Extraction tube-d (PP capping) | 0-2 ml | 50 mm | 8 mm | 1000 pcs/bag; 10000 pcs/box

Technical specifications

• Model: Extraction Tube A
• Main materials: PP / PS emitter, PE dropper
• Filter element: nylon
• Typical capacity: 0-2 ml
• Heights (examples by variant): 62 mm, 50 mm, 39.5 mm
• Diameters (examples by variant): 12.3 mm, 9.5 mm, 10 mm, 8 mm
• Packing sizes: 1000 pcs/bag; 10000 pcs/box
• Applications: industrial chemistry, environmental detection, biochemistry, nucleic acid testing, antigen detection reagents, buffer solution transfer
• Key features: reliable sealing, single-material production, low volume variation; suitable for ordinary, viscous and impure liquids; can be equipped with a filter element
