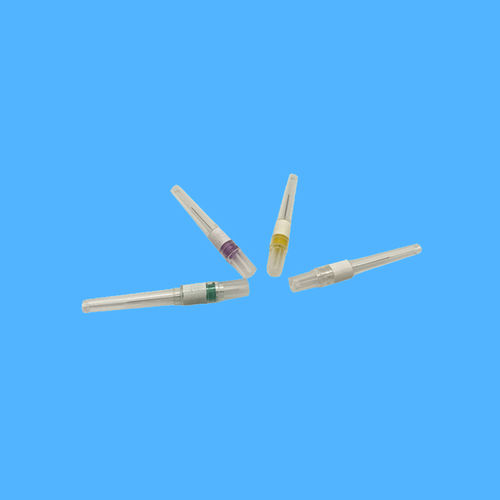

Dental anesthesia needle DN series

sterilesafetyatraumatic

Product overview
Disposable dental needles for use with stainless steel dental syringes. Atraumatic and sharply honed cannula with silicone coating to minimize patient discomfort. Production and inspection are computer-controlled to ensure traceability and consistent single-use sterility.

Details
Cannula treated with a silicone coating for reduced insertion force. Each needle is individually packaged and provided sterile. Hubs feature external self-tap ribs and internal threads for secure attachment to compatible syringes. Hubs are color-coded to indicate gauge for quick identification. Additional sizes available on request.

Product features

• Stainless steel cannula manufactured from medical-grade stainless steel
• Silicone coating reduces pain and tissue trauma during injection
• Needle hub molded in medical-grade PVC with internal threads for secure fitting to syringes
• Outer cover: opaque PE with anti-slip stria; inner cover: transparent PE
• Color-coded hubs for rapid size recognition
• Individually packaged and sterilized; computer-controlled production and inspection

Available sizes (Ref No. | Needle gauge | Needle length | Thread type)
Ref No. | Needle gauge | Needle length | Thread type

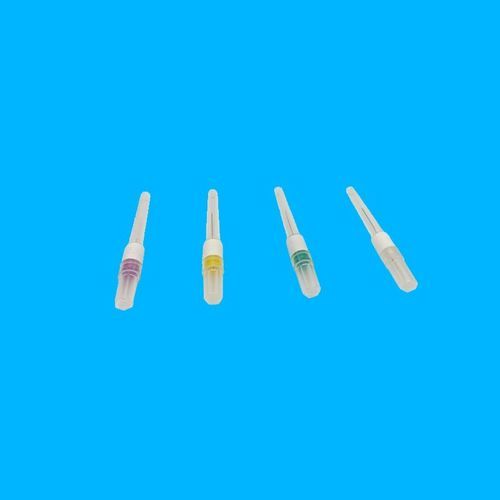

DN-2725/M | 27G | 25 mm | Metric
DN-2725/I | 27G | 25 mm | Inch
DN-2732/M | 27G | 32 mm | Metric
DN-2732/I | 27G | 32 mm | Inch
DN-2738/M | 27G | 38 mm | Metric
DN-2738/I | 27G | 38 mm | Inch
DN-3013/M | 30G | 13 mm | Metric
DN-3013/I | 30G | 13 mm | Inch
DN-3021/M | 30G | 21 mm | Metric
DN-3021/I | 30G | 21 mm | Inch
DN-3025/M | 30G | 25 mm | Metric
DN-3025/I | 30G | 25 mm | Inch

Technical specifications

• Material: high-quality medical-grade stainless steel cannula
• Surface treatment: silicone coating on cannula to reduce insertion force and tissue trauma
• Hub: medical-grade PVC with internal threads for secure attachment
• Packaging: individually packaged, sterile, single-use needles
• Covers: outer cover in non-transparent PE with anti-slip stria; inner cover in transparent PE
• Identification: color-coded hub for quick gauge recognition
• Manufacturing & inspection: computer-controlled processes ensuring consistency
• Compatibility: designed for use with stainless steel dental syringes
• Available sizes: gauges 27G and 30G; lengths 13 mm, 21 mm, 25 mm, 32 mm, 38 mm; metric and inch thread variants
