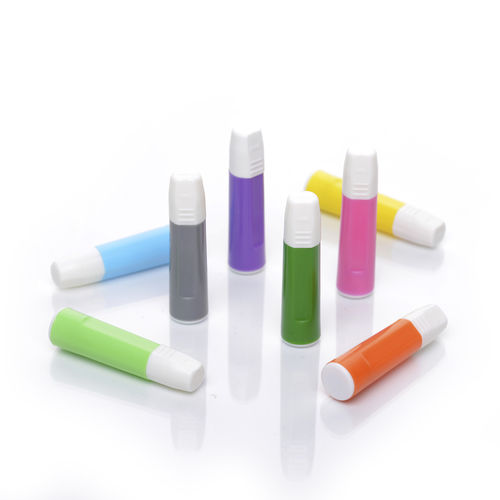

Safety lancet XLII series

sterile

Product overview
Safety lancets provide a secure, single-use solution for capillary blood sampling. Designed for rapid puncture and sterile blood collection, the XLⅡ series features automatic needle retraction and color-coded variants to meet clinical volume and patient comfort requirements.

Key features

• Needlestick injury prevention: pre-set penetration depths, automatic needle retraction mechanism and tamper-resistant design reduce accidental exposures.
• One-step activation: contact-pressure activation enables fast, consistent puncture.
• Automatic needle retraction / high-speed auto-rebound: minimizes needle exposure time to lower secondary infection risk.
• Multiple models and color-coding: range of gauges and depths available to match required blood volume; distinct colors for quick identification.
• Sterilization: cobalt-60 gamma ray sterilization for validated microbial control.
• Ease of use: pre-loaded, intuitive trigger—remove protective cap, locate puncture site and press to collect blood.
• Hygienic single-use design: disposable device reduces cross-contamination risk.

How to use

• Remove the protective cap.
• Select the appropriate puncture site.
• Press forward (one-step contact pressure) to activate and collect blood.

Available models (table)
Model | Specification | Depth | Color | Shelf life (year) | Package
XLⅡ-2118 | 21G (0.8mm) | 1.8mm | Dark green | 3 | 100/5000
XLⅡ-2122 | 21G (0.8mm) | 2.2mm | Orange | 3 | 100/5000
XLⅡ-2318 | 23G (0.6mm) | 1.8mm | Light green | 3 | 100/5000
XLⅡ-2618 | 26G (0.45mm) | 1.8mm | Yellow | 3 | 100/5000
XLⅡ-2818 | 28G (0.36mm) | 1.8mm | Purple | 3 | 100/5000
XLⅡ-3018 | 30G (0.3mm) | 1.8mm | Gray | 3 | 100/5000


Characteristics / technical specifications

• Single-use safety lancet with automatic needle retraction.
• Activation method: one-step contact pressure (simple trigger mechanism).
• Needle gauges available: 21G, 23G, 26G, 28G, 30G (gauge and outer diameter noted per model).
• Penetration depths: 1.8mm and 2.2mm options depending on model.
• Color-coded models for quick identification of gauge/depth.
• Sterilization: cobalt-60 gamma ray sterilization.
• Shelf life: 3 years (see table).
• Packaging: typically 100 per inner pack / 5000 per carton.
• Designed to provide rapid blood collection with adequate sample volume while minimizing patient discomfort.
