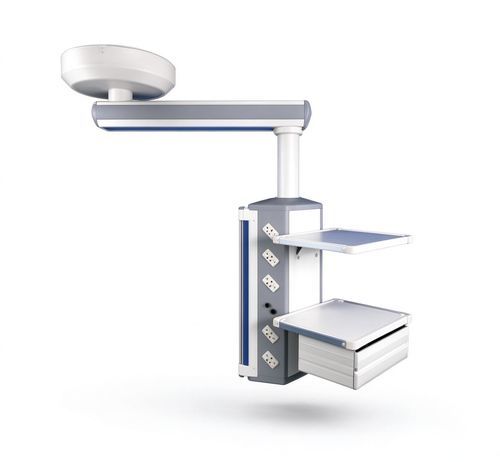

Medical pendant HYZ-SD90

ceiling-mountedintensive caresingle-arm

Arm rotating radius: 1000mm Arm rotating angle : 340 Braking system : friction brake Standard configuration Médical gas terminal units (penlonBS standard or DIN standard) 2 off oxygen terminal units 2 off vacuum terminal units 1 off médical air terminal unit Electrical socket (Australia Clipsal / Schneider) 6 off China type 3 pin 10A sockets 2 off earth studs Accessories 2 off equipment shelves 1 off drawer 1 off IV pôle &infusion pump rack The related contractor should be responsible for the gas piping/power line/communication line: 1. Laying medical gas supplying line to the anchor point of the pendant, putting the gas piping into the pendant, angle branch radius: R>=30mm. The diameter requirements for the gas piping: 10mm(suction), others 8mm(oxygen etc). 2. For laying power lines, communication lines to the positioning point of the pendant, the reserved length shall be guaranteed <1 m after spreading to the ground. For power line: 3x2.5mm2, 1x6mm2
