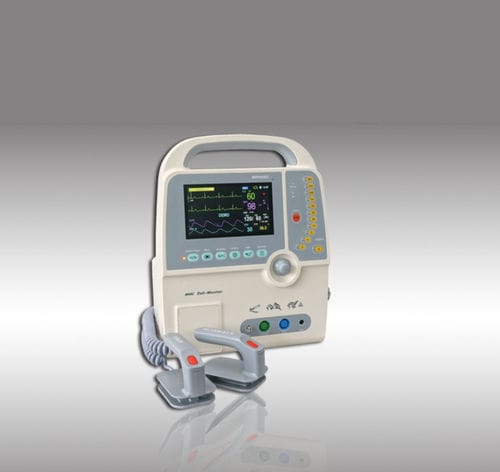

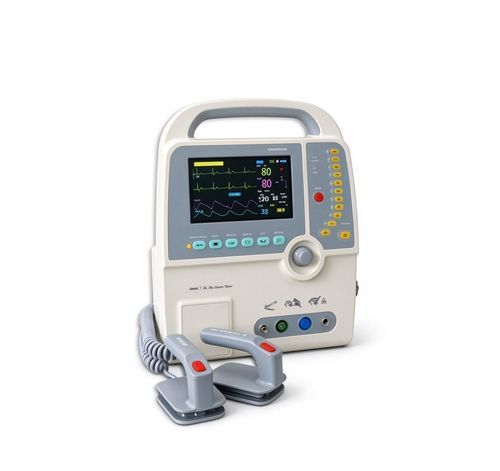

Manual external defibrillator HYZ-9000C

with multi-parameter monitor

Energy accuracy <±1% Standard Adult/Pediatric Paddles Reusable external adult paddles (pediatric paddles integrated) Power requirements. (1) AC Power supply 100V~240V,50Hz/60 Hz (2) Vehicle Voltage(Option) DC 12V Internal Battery Backup Charging time Time-Minimum of 4 hours for full charging Battery charging During AC Power Supply operation of the device. Charging /Low Battery Indication Red LED Battery Capacity 100% of the battery will provide 120-min monitoring; and 35 discharges at 360 joules. Display LCD Dimensions 7-inch Type High resolution true-color graphic Resolution 480X234 ECG ECG lead:Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1～V6 Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation Respiration Measurement method: Thoracic impedance NIBP Working mode: Manual/Automatic/stat(5 minutes) Method Automatic oscillation Cuff type standard Adult; optional Pediatric/Neonatal Temperature Measurement range 20~45℃ Resolution 0.1℃ Pulse Oximetry(spO2) Display spo2 value, pulse histogram, waveform, Pulse Range 0~99%for adult, pediatric and neonatal patients Probe standard adult finger clip Pulse range Pulse range 0-255bpm Standard parameter & configuration ECG/ RESP/SPO2/TEMP/PR/NIBP/DEFIBRILLATOR
