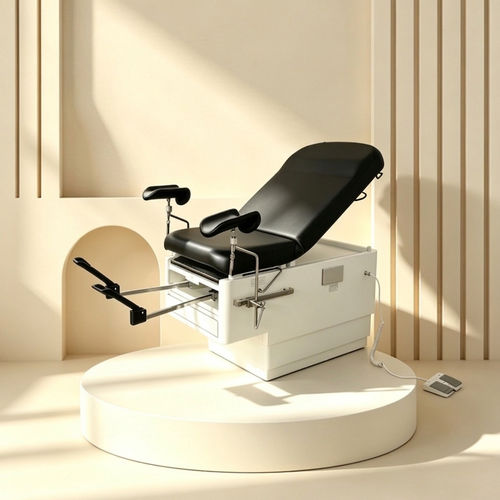

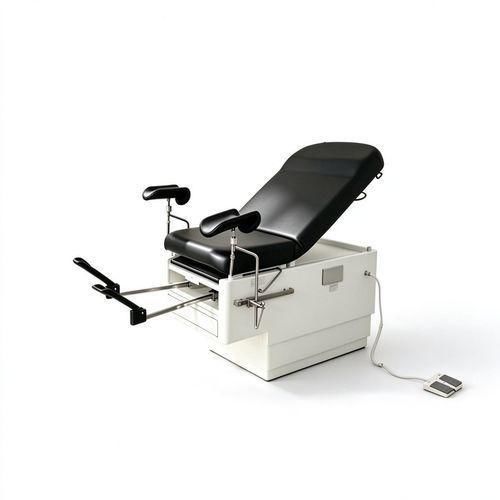

Gynecology examination table A24-4

gynecologicalelectricheight-adjustable

Overview
Compact electric gynecological examination bed designed for small consultation rooms. Supports sitting and supine positions and integrates stirrups, storage and accessories to allow a full examination on a single unit.

Short description
Suitable for clinics that require space-efficient equipment and versatile patient positioning. The bed permits easy transfer on and off for patients and adapts to a range of gynecological examinations thanks to adjustable backrest and seat, retractable footrest and multiple storage options. Controls include foot pedal and hand switch for straightforward operation.

Key features

• Backrest adjustable 0°–65° (±5°) via gas spring and hand switch
• Height adjustable 550–830 mm by foot pedal
• Retractable and angle-adjustable foot support
• Retractable foot rest with stainless steel base
• Seat board adjustable 0°–7° (±1°)
• Angle-adjustable leg supports
• Foot pedal control

Standard configuration

• PU foam leg support: 2 pcs
• Foot support: 2 pcs
• Drawer: 1 pc
• Stainless steel bed pan: 1 pc
• Paper roll holder: 1 pc
• Socket: 4 pcs
• USB port: 4 pcs

Optional accessory

• Flexible lamp: 1 pc

Technical parameters

• External size: 1920×700 mm
• Back/seat board width: 690 mm
• Mattress thickness: 80 mm
• Back/seat board length: 425 mm
• Foot board length: 960/535 mm
• Backrest range: 0°–65° (±5°)
• Seat board range: 0°–7° (±1°)
• Height range: 550–830 mm

Model and specifications

• Model: A24-4
• Type: Electric gynecological examination bed
• Applicable positions: sitting and lying
• Integrated stirrups and storage spaces
• Accessories included: PU foam leg supports, foot supports, drawer, stainless steel bed pan, paper roll holder, sockets, USB ports
• Optional accessory: flexible lamp
