ultrasound diathermy unit / trolley-mounted / 2-channel
I-TECH UT2

Add to MyMedicalExpo favorites
Compare this product
ultrasound diathermy unit / trolley-mounted / 2-channel ultrasound diathermy unit / trolley-mounted / 2-channel - I-TECH UT2
{{requestButtons}}

Characteristics

  • Type:

    ultrasound diathermy unit

  • Ergonomics:

    trolley-mounted

  • Number of channels:

    2-channel

Description

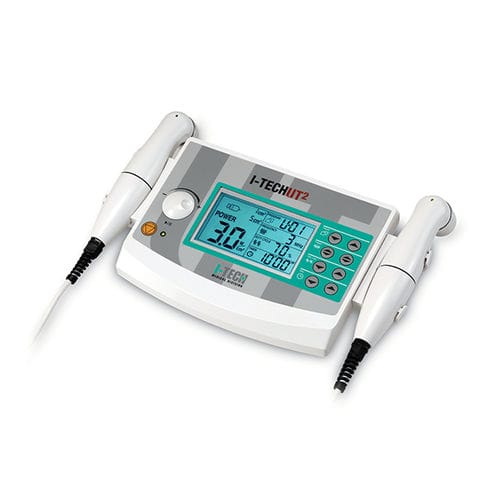

I-TECH UT2
ULTRASOUND THERAPY
I-TECH UT2 is a professional ultrasound device equipped with 2 handles respectively with 5 cm2 and 1 cm2 head. Thanks to its equipment and parameters setting I-TECH UT2 is a high performance device particularly indicated for professional user.
TECHNICAL FEATURES
Power supply input 100V-240V, 47Hz-63Hz, 1.35A, output 15V 3A Max.
Ultrasound frequency 1 MHz ± 10% and 3 MHz ±10%
Output power 0.5 W – 10 W ± 20% when duty cycle ? 80% for 5 cm2 ultrasound head - 0.5 W – 15 W ± 20% when duty cycle ? 70% for 5 cm2 ultrasound head - 0.1 W – 2 W ± 20% when duty cycle ? 80% for 1 cm2 ultrasound head - 0.1 W – 3 W ± 20% when duty cycle ? 70% for 1 cm2 ultrasound head
Effective intensity 3 W/cm2 ± 20% (1 MHz) 3 W/cm2 ± 20% (3 MHz)
Working frequency 100 Hz
Duty cycle 10%-100% stepping 10%
Maximum adjustable therapy time 30 minutes
Effective radiating area 5 cm2 ± 20%; 1 cm2 ± 20%
Collimated beam type
Ultrasound head (material) aluminium
Direct contact and water immersion use
Led indicator
Medical device CE0476
Dimensions 350 mm x 186 mm x 86 mm
EQUIPMENT
Trolley with 3 shelves and 1 power socket
Adjustable and jointed arm
Support for ultrasound head
ADDITIONAL INFORMATION
I-TECH UT2 is provided with 10 preadjusted programs and professional user can modify, and memorize, the following parameters:

Frequency (1 MHz or 3 MHz)
Effective intensity (up to 3 W/cm2)
Duty cycle (10%÷100% stepping 10)
Therapy time (up to 30 minutes)
I-TECH UT2 is a medical device CE0476 certificated. It is recommended the use only by seasoned professional in the hospital/ambulatory environment.
