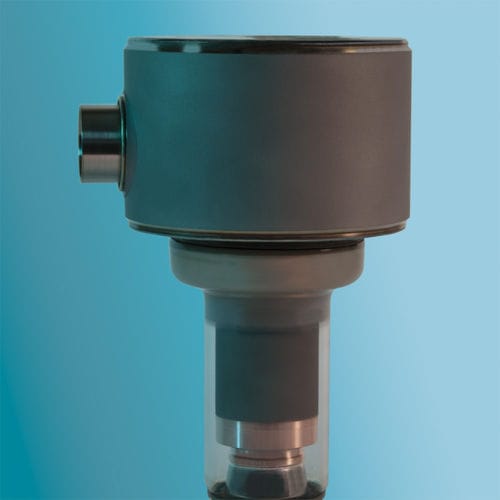

Rotating anode X-ray tube XM12T

mammography

• Metal center section • RTM target • Reduced thermal stress on the bearings improves tube life duration • Severe tests during conditioning assure best performance Specifications Anode angle and diameter 12.5° – 80 mm Anode heat storage capacity 225 kJ (300 kHU) Rotating anode speed 3000 – 10000 rpm Max emission current sF 35 mA – 25 kV LF 140 mA – 25 kV IAE HOUSINGS C339E lateral HV and LV sockets, VARIAN version C339C coaxial HV and LV sockets, COMET version C339V coaxial HV and LV sockets, VARIAN version C340V
