Gel Dimensions: 5.0 cm (wide)x 7.0 cm (long)
Maximum Sample Capacity: 10 samples (1 comb, 10 samples)
Buffer Capacity: 250 ml
Distance Between Electrodes: 13.0 cm
Maximum Voltage: 200 V

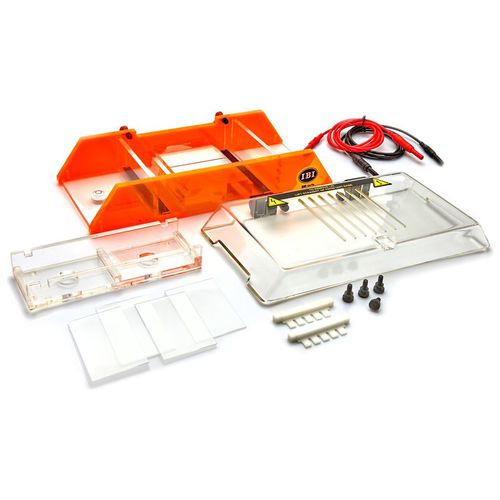

Comes with: vented lid, dual casting fixture, four glass casting slides, two 1.5 mm x 5 tooth combs, bubble level, and power cords
The QSH Lab-Pal Dual Gel horizontal electrophoresis unit is specially designed for the educational market based on years of tested and proven performance in the research market. The QSH Lab-Pal maintains all key features to enhance performance on safety, durability, ease of use, and cost of operation.
The QSH Lab-Pal incorporates a patented vented lid that allows heat to escape from the gel rig which improves the resolution of faster gel runs. Additional safety is incorporated into the lid with the patented gravity electrical connectors which disconnect the power to the unit when the lid is removed.
The unique, dedicated dual casting system allows casting independent from the unit while providing maximum efficiency between lab partners. The dual gel casting system eliminates the need for casting tape. The QSH Lab-Pal dual gel casting system also allows for numerous gel slides to be cast and stored for later use (when covered with buffer and refrigerated). This feature helps to minimize classroom gel casting time and maximize precious classroom teaching time.
The QSH Lab-Pal is constructed of durable cast acrylic that resists cracking and warping for years of use.
The operation manual includes casting procedures, replacement parts, and helpful hints to maximize your unit’s performance in your teaching lab.
