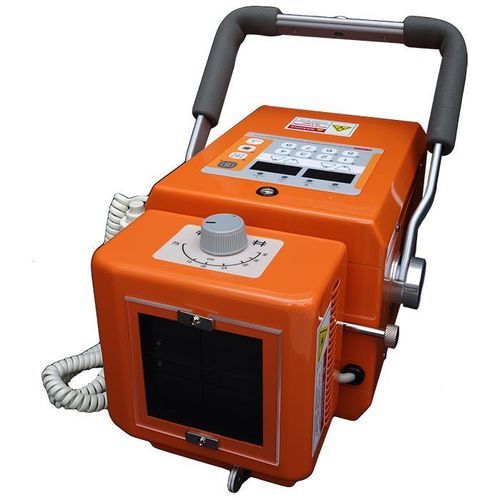

Radiography X-ray generator Orange 1040HF

portablewith control panelwith power supply

Overview
The Orange 1040HF is a mobile X-ray generator designed for home radiology, clinics and nursing homes. With a power capacity up to 2.4 kW and a wide kV range, it provides the operating parameters required for most bedside and outpatient radiographic examinations while remaining easy to manoeuvre and set up.

Main features

• Power: up to 2.4 kW
• Voltage range: 40–100 kV
• mAs range: 0.32–100
• Maximum current: 40 mA
• Focal spot size: 1.2 × 1.2 mm
• Manual collimator with integrated light and automatic switch-off timer
• Optional dosimeter available
• Supplied with flight case/trolley and detachable height-adjustable stand

Use cases
Intended for home radiology services and suitable for clinics and nursing homes. Its portability and available power make it appropriate for chest, limb and bedside imaging, and for mobile imaging workflows in small imaging centres or domiciliary care.

Accessories shown in gallery

• Flight case (aluminum suitcase) compatible with the generator
• TR100 stand (detachable height-adjustable stand)

Technical specifications

• Voltage: 40 - 100 kV
• mAs: 0.32 - 100
• Maximum current: 40 mA
• Focal spot (size): 1.2 × 1.2 mm
• Maximum power: up to 2.4 kW
• Manual collimator with integrated light
• Automatic switch-off timer
• Dosimeter: optional
• Includes flight case/trolley and detachable height-adjustable stand
• Intended applications: home radiology, clinics, nursing homes
