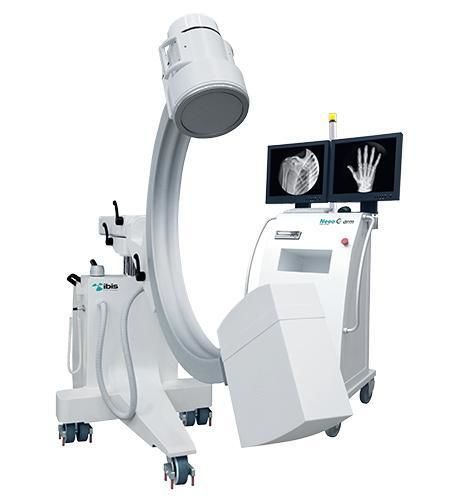

Mobile C-arm Neeo Vet

with integrated video monitor

Product overview
Neeo C-Arm Vet is a mobile veterinary C-arm designed for fluoroscopic imaging in advanced veterinary clinics and operating theatres. It supports low-dose fluoroscopy for diagnostic and interventional orthopaedic procedures and is available with 9" or 12" image intensifiers and either 3.5 kW or 5 kW generators.

Applications

• Interventional and diagnostic procedures in orthopaedics and traumatology
• Positioning of bone or subcutaneous grafts and insertion of K-wires for fracture stabilisation
• Prosthesis placement verification and intraoperative imaging guidance
• Low-dose protocols to limit exposure for patient and operator

Advanced imaging features (RTP and vascular tools)
Optional RTP (Real Time Processing) enables vascular, urological and cardiological studies. Key functions include digital subtraction to visualise contrast passage, looping (replay of acquired sequences), and angiographic measurement (QA) for stenosis assessment. These functions support accurate placement of stents and expanders.

Control and display
The control panel features a large touch screen for selection of fluoroscopy modes (pulsed, one-shot, standard), parameter adjustment, image rotation and collimator control. A laser pointer can be toggled from the panel. Four side buttons provide vertical arc movement driven by an ultra-quiet motor.

Equipment and monitors
Two independent 19" medical-grade monitors are provided and can be positioned (rotation, revolution, tilting, height adjustment) according to operator needs. Work and feedback monitors operate separately to optimise workflow.

C-arm range

• Neeo S9 — Fixed anode, 9" intensifier, 3.5 kW
• Neeo R9 — Rotating anode, 9" intensifier, 3.5 kW
• Neeo R9 plus — Rotating anode, 9" intensifier, 5 kW
• Neeo S12 — Fixed anode, 12" intensifier, 3.5 kW
• Neeo R12 — Rotating anode, 12" intensifier, 3.5 kW
• Neeo R12 plus — Rotating anode, 12" intensifier, 5 kW

Possible arc movements

• Orbital movement: 90° + 40°
• Swivelling: +12° / -12°
• Axial rotation: +180° / -180°
• Linear movement: 210 mm horizontal – 450 mm vertical

Specifications / technical data

• Image intensifier sizes: 9" and 12"
• Anode options: fixed or rotating anode inserts
• Generator power: 3.5 kW or 5 kW
• Optional RTP for vascular/urological/cardiac diagnostics (digital subtraction, looping, QA angiographic measurement)
• Large touch screen control with mode selection and image manipulation
• Laser pointer on/off via control panel
• Two 19" medical-grade monitors with independent operation and multi-axis positioning
• Arc kinematics: orbital, swivelling, axial rotation, linear horizontal and vertical movement
• Ultra-quiet vertical motor for arc movement
• Designed for low-dose fluoroscopy in orthopaedics, traumatology and interventional procedures
