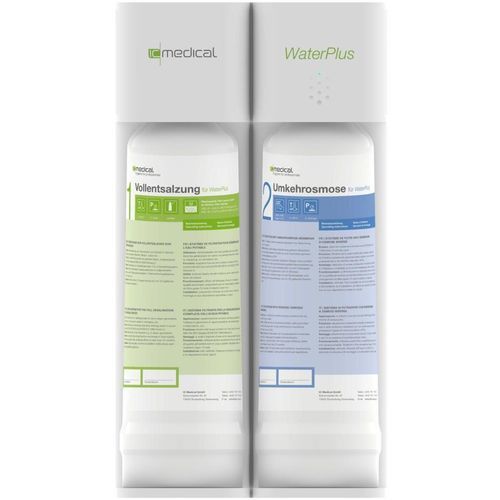

Sterilizer water treatment system IC Medical WaterPlus

for dental unitsfor laboratoryfor healthcare facilities

Product description
Lime and salt deposits are among the most common causes of malfunctions in washer-disinfectors and premature wear of instruments. The IC Medical WaterPlus combines reverse osmosis with full deionization in a compact unit — for noticeably purer water, fewer repairs and significantly longer equipment life. It can, on request, supply the entire hygiene room, including dental units.

Reliability & applications
Over 200 satisfied customers report more reliable operation and spotless instruments compared with previous water treatments.

Benefits

• 2-in-1 technology — reverse osmosis with full deionization in a single unit instead of two separate systems: reduced footprint and lower maintenance.
• Compact & space-saving — with only 277 × 297 × 505 mm the IC Medical WaterPlus fits under any sink in the hygiene room.
• Quick filter replacement — cartridges last up to 24 months and can be changed by the user.
• Supplies the entire hygiene room — from washer-disinfector and sterilizer to ultrasonic bath and separate water outlet.
• Suitable for dental units — fills bottle systems or can be directly connected to the dental unit.

Accessories
Spare filters: WaterPlus reverse osmosis filter cartridge, WaterPlus full deionization filter cartridge.

Technical data (table)
Technology: reverse osmosis + full deionization in one unit
Filter capacity: up to 60,000 liters at 10 °dH water hardness
Flow rate: 120 L/h
Dimensions (W × D × H): 277 × 297 × 505 mm
Weight: 17.7 kg
Filter replacement: at latest every 24 months, user-replaceable
Full deionization – standard: according to DIN EN 13060 and DIN EN 285
Full deionization – application: deionized water for laboratories; steam sterilizers in medical/dental fields
Reverse osmosis – rejection rate: > 97% salt removal
Reverse osmosis – yield: up to 50% permeate (product water)
Reverse osmosis – resistance: highly resistant to chlorine
Connections: drain, tank, water in, product
Supply area: entire hygiene room – e.g. washer-disinfector, sterilizer, ultrasonic bath
Dental units: bottle filling or direct connection possible
Additional water outlet: separate outlet for purified water available
Operating water temperature: 5–30 °C
Water pressure: 0.3–0.4 MPa (2–4 bar)
Voltage / power: 220–240 V~, 50/60 Hz / 200 W
Target users: medical practices, research institutes, laboratories, purified water users

Characteristics / technical specifications

• Integrated 2-in-1 technology: reverse osmosis + full deionization
• Filter capacity: up to 60,000 L (at 10 °dH)
• Flow: 120 L/h
• Dimensions: 277 × 297 × 505 mm
• Weight: 17.7 kg
• Filter change intervals: up to 24 months, user-friendly
• Compliance with relevant standards: DIN EN 13060 / DIN EN 285 (full deionization)
• High rejection rate for reverse osmosis: > 97%
• Permeate yield: up to 50%
• Operating conditions: 5–30 °C, water pressure 0.3–0.4 MPa
• Electrical data: 220–240 V~, 50/60 Hz, 200 W
