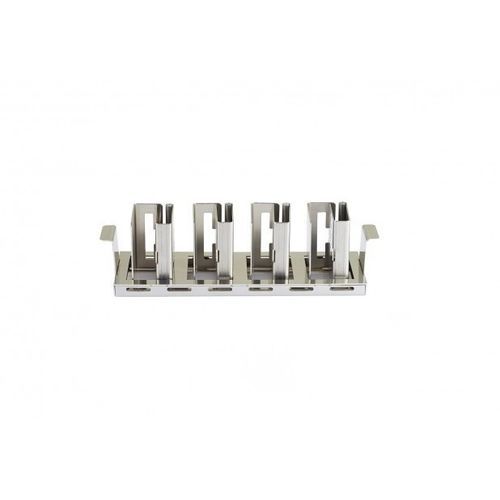

Tray for dental instruments Flexio Bohrerständer 39

Product description
The Flexio Bohrerständer 39, offering a total of 156 slots, is manufactured in stainless steel. The set comprises four drill/bur containers with 39 slots each, designed to be loaded directly in treatment rooms, processed in a thermal disinfector for cleaning and disinfection, and finally autoclaved. The included holder is universally compatible with other thermal disinfectors.

Details
Each container provides two slot sizes: 21 large and 18 small slots per container, suitable for drill shaft diameters of 1.59 mm and 2.5 mm. Accepted shaft heights range from 18.5 mm to 27.5 mm. This allows up to 156 WS- or FG-design instruments to be reprocessed per cycle.

The high-sided containers with a locking mechanism keep the bur heads reliably fixed throughout the entire reprocessing workflow and protect the cutting edges.

Technical data
Type designation: Flexio Bohrerständer 39
Article number: 105 085
Component dimensions (HxWxD): Flexio holder for bur rack 4.0 x 5.7 x 18.7 cm
Flexio bur container with 39 slots each 3.3 x 3.9 x 5.5 cm
Material: stainless steel
Scope of delivery: 1x Flexio holder, 4x Flexio bur containers (39 slots each)

Additional accessories

• Thermal disinfector HYG 5 (complete solution with hygiene package and thermal disinfector)
• Single-program technology
• Two-level processing
• Made in Baden-Württemberg
• 12 months device warranty; 3 years in Power Duo
• Nationwide in-house service technicians

Characteristics / Technical specifications (summary)

• Type designation: Flexio Bohrerständer 39
• Article number: 105 085
• Material: stainless steel
• Total slots: 156 (4 × 39)
• Slot sizes per container: 21 large, 18 small
• Suitable drill shaft diameters: 1.59 mm and 2.5 mm
• Permitted shaft heights: 18.5 mm to 27.5 mm
• Component dimensions: holder 4.0 × 5.7 × 18.7 cm; container 3.3 × 3.9 × 5.5 cm
• Scope of delivery: 1× holder, 4× bur containers (39 slots each)
