Pressure sensor QuickStart™

processsmall form factor

Product overview

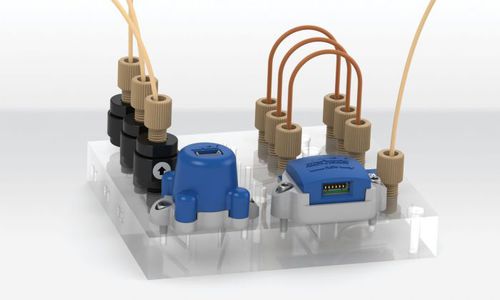

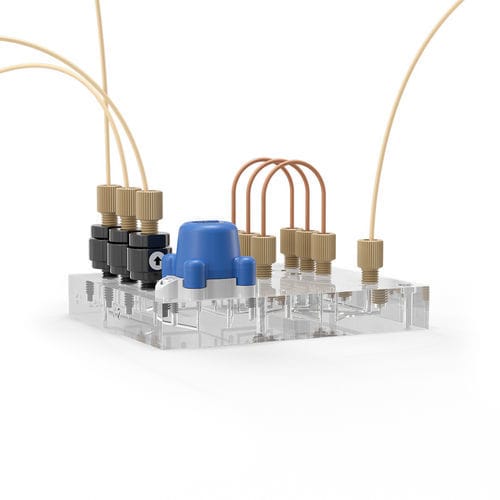

The QuickStart™ I2C PS200M is an in-line, modular pressure sensor supplied as a manifold option for integration into instrument manifolds. Designed for compact manifold installation, it provides digital output via I²C and is suitable for applications requiring chemical-compatible materials.

Product identifiers
IDEX Part Number: I2C PS200M 1 PACK
Unit of measure: Each

Technical information
A dedicated Pressure Sensor Data Sheet is available and contains complete specifications, electrical interface details and guidance for manifold integration.

Specifications (table)

• Body Materials — PEEK
• Digital Communication Bus — I²C
• Mounting — 4-40 or M3x.5 screws
• Operating Voltage — 5.0V
• Power Consumption — 40 mW
• Pressure Detection Response Time — 67 ms

Features

• In-line, modular compact sensor format for direct manifold integration
• Digital communication via I²C for system-level interfacing
• PEEK body material for broad chemical compatibility
• Low power consumption (~40 mW) for energy-sensitive systems
• Fast pressure detection response (~67 ms) for dynamic measurements

Technical specifications

• Body Materials: PEEK
• Digital Communication Bus: I²C
• Mounting: 4-40 or M3x.5 screws
• Operating Voltage: 5.0V
• Power Consumption: 40 mW
• Pressure Detection Response Time: 67 ms
