Intel® Core™ medical box PC HTB-300-MTL-H
for medical imagingfor dental imagingfixed

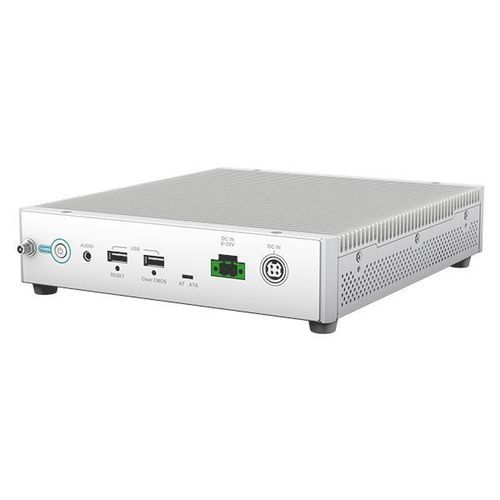

Intel® Core™ medical box PC - HTB-300-MTL-H - IEI Integration Corp. - for medical imaging / for dental imaging / fixed
Intel® Core™ medical box PC - HTB-300-MTL-H - IEI Integration Corp. - for medical imaging / for dental imaging / fixed
Intel® Core™ medical box PC - HTB-300-MTL-H - IEI Integration Corp. - for medical imaging / for dental imaging / fixed - image - 2
Intel® Core™ medical box PC - HTB-300-MTL-H - IEI Integration Corp. - for medical imaging / for dental imaging / fixed - image - 3
Intel® Core™ medical box PC - HTB-300-MTL-H - IEI Integration Corp. - for medical imaging / for dental imaging / fixed - image - 4
Intel® Core™ medical box PC - HTB-300-MTL-H - IEI Integration Corp. - for medical imaging / for dental imaging / fixed - image - 5
Intel® Core™ medical box PC - HTB-300-MTL-H - IEI Integration Corp. - for medical imaging / for dental imaging / fixed - image - 6
Add to favorites
Compare this product

Characteristics

Processor
Intel® Core™
Applications
for medical imaging, for dental imaging
Configuration
fixed
Technology
with artificial intelligence
Resolution
4K
Other characteristics
with USB, fanless, with enhanced graphics

Description

Overview
  • The HTB-300-MTL-H is a compact, medical-grade AI Box PC optimized for space-constrained clinical environments. It integrates Intel® Core™ Ultra (Meteor Lake‑H) processors with an on‑processor NPU and offers flexible expansion in a 1U, fanless-ready chassis.


Key features
  • Intel® Core™ Ultra 5-125H / Ultra 7-155H (Meteor Lake‑H) with integrated NPU for accelerated AI inference.
  • Ultra-slim 1U form factor (approx. 4.4 cm) and fanless baseline design (optional MXM fan module available).
  • MXM 3.1 Type A slot (PCIe Gen5 x8) for optional GPU acceleration (MXM modules supported).
  • Dual M.2 2280 PCIe Gen4 x4 SSD slots (NVMe) and 2 × DDR5 SO‑DIMM (up to 64 GB, DDR5‑5600).
  • Front-access USB including USB 3.2 Gen2 Type-A and USB Type-C with DisplayPort 1.2 (4K) and PD support.
  • Four RS-232 ports for direct connectivity with medical monitoring devices.
  • Dual selectable power inputs (Terminal Block and DC‑In Jack) for flexible installations.


MXM compatibility
  • Supports MXM-A modules via MXM 3.1 Type A (PCIe Gen5 x8 signal). Typical module power ranges: MXM-A500 (25–40 W), MXM-A1000 (35 W or 60 W), MXM-A2000 (60 W).
  • Note: PCIe full-height/half-length card support via riser may be limited when MXM is installed.


USB & I/O
  • Multiple front and rear USB ports (USB 3.2 Gen2 Type-A 10 Gbps, USB Type-C with DP1.2 up to 4K and up to 10 Gbps data + PD).
  • Serial/legacy I/O: 4 × RS-232 for integration with physiological monitors and legacy medical equipment.
  • Networking: Intel i226IT dual LAN (dual‑GbE) for reliable connectivity and redundancy.


Wi‑Fi 7 (optional)
  • Dedicated M.2 2230 (E Key) slot supporting optional Wi‑Fi 7 modules (802.11be) with multi-link operation (MLO) across 2.4 / 5 / 6 GHz for very high throughput.


Technical specifications
  • Model: HTB-300-MTL-H — Brand: IEI
  • Processor: Intel® Core™ Ultra series (options: Ultra 5-125H, Ultra 7-155H), Meteor Lake‑H, ~28 W class.
  • NPU: integrated neural processing unit on‑processor for efficient inference (example benchmark: Stable Diffusion v1.5, 20 iters — NPU 20.7 s vs CPU 43.3 s and GPU 14.5 s; NPU power ≈10 W vs CPU ≈40 W and GPU ≈37 W).
  • Form factor: ultra-slim 1U metal chassis (approx. 4.4 cm), fanless with large-area heat fins; optional MXM fan module for active cooling.
  • Memory: 2 × DDR5 SO‑DIMM, up to 64 GB, DDR5‑5600 MT/s.
  • Storage: 2 × M.2 2280 PCIe Gen4 x4 (NVMe), RAID 0/1 support.
  • Expansion: 1 × MXM 3.1 Type A (PCIe Gen5 x8 signal); PCIe full-height/half-length via riser (availability depends on MXM configuration).
  • Power: dual input design — Terminal Block and DC‑In Jack (terminal block available in specific configurations).
  • Chassis & safety: all-metal chassis with potential support for potential equalization conductor for medical environments.
  • Typical medical use cases: C‑arm imaging systems, smart medical cabinets, dental navigation, patient monitors and edge AI medical devices.
