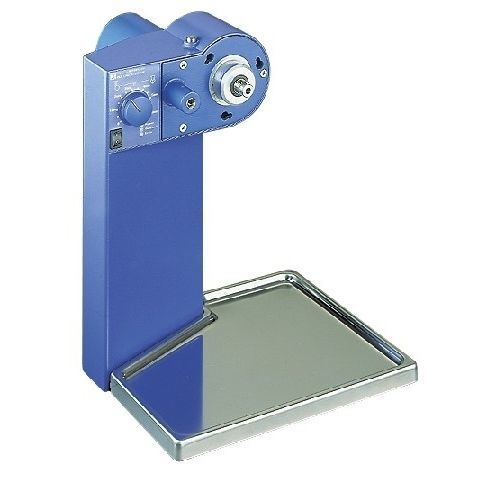

Impact mill MF 10 basic

laboratorytabletop

Continuously operating universal grinder. • Easy to clean working surface • Two different grinding heads can be attached to the drive • Grinding heads/sieve not incl. with delivery For crushing fibrous substances such as paper and vegetation, but also for plastics and material with a low volume weight. Before being discharged, the ground material passes through a sieve, which is interchangeable and available in different hole sizes. The ground material can then be collected using an NS 29 standard ground vessel. For crushing brittle, hard materials such as minerals, building materials up to Mohs hardness 6. Before being discharged, the ground material passes through a sieve, which is interchangeable and available in different hole sizes. The ground material can then be collected using an NS 29 standard ground vessel. Process type : inline Operating principle : cutting/impact Motor rating input/output : 1000 W/500 W Speed range : 3000 - 6500 rpm Power-ON/OFF time : 120 min/30 min Mill feed can be cooled in milling chamber with dry ice : yes Dimensions (W x H x D) : 320 x 380 x 300 mm Weight : 9.7 kg Permissible ambient temperature : 5 - 40 °C Permissible relative humidity : 80 % Protection class according to DIN EN 60529 : IP 22 Voltage : 230 / 115 V Frequency : 50/60 Hz Power input : 1000 W MF 10.1 | 10.2 Process type : inline Circumferential speed max. : 34 m/s | 24.5 m/s Feed hardness max. : 6 Mohs Feed grain size max. : 10 mm | 15 mm Material milling chamber : stainless steel 1.4308 Mill feed can be cooled in milling chamber with dry ice : yes Dimensions (W x H x D) : 320 x 450 x 300 mm | 320 x 560 x 300 mm Weight : 2.942 kg | 2.633 kg
