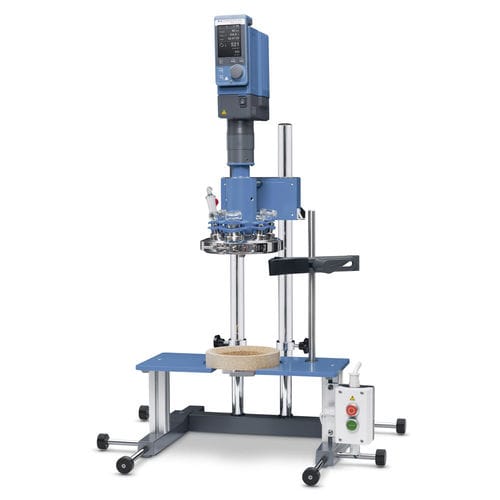

Laboratory reactor LR-2.ST the High-Performer

Modularly configured laboratory reactor for the optimization and reproduction of various chemical reactions, mixing and homogenization processes on a lab scale. The system is particularly characterized by the agitator mounting, which allows for a safe transfer of the higher motor torque. ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover. Suitable for vacuum operation Solvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sample Infinitely variable speed Torque trend display for measuring changes in viscosity Microprocessor-controlled speed regulation, enables steady speed, also under load Removable WiCo (wiresless controller) for remote and safe use in a fume hood The LR-2.ST laboratory reactor system consists of: Stand system EUROSTAR 200 control P4 laboratory stirrer with higher torque Safety Reactor cover Technical Data Useable volume500 - 2000 ml Working temperatureroom temp. - 230 °C Attainable vacuum25 mbar Viscosity max.150000 mPas Speed range8 - 290 rpm Telescope stand stroke 390 mm Material in contact with mediumborosilicate glass, FFPM, PTFE, steel 1.4571 Reactor vessel openings (units/standard)3/NS 29/32 2/NS 14/23 Dimensions (W x H x D)460 x 1240 x 430 mm Weight25 kg Permissible ambient temperature5 - 40 °C Permissible relative humidity80 % Voltage115 V
