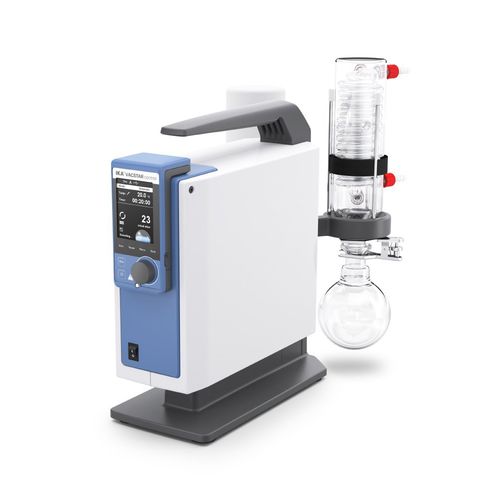

Laboratory vacuum pump IKA Vacstar control
diaphragmhigh-performance

laboratory vacuum pump
laboratory vacuum pump
laboratory vacuum pump
laboratory vacuum pump
Add to favorites
Compare this product


Characteristics

Applications
laboratory
Technology
diaphragm
Options
high-performance
Flow

1.32 m³/h
(46.62 ft³/h)

Power

140 W
(0.19 hp)

Pressure

1.2 bar
(17.4 psi)

Weight

14 kg
(30.9 lb)

Width

270 mm
(10.6 in)

Height

435 mm
(17.1 in)

Description

Separation, filtration, removal: The VACSTAR dry 4-chamber membrane vacuum pump is powerful, resistant to chemicals and low-maintenance. VACSTAR control is the ideal system with its integrated vacuum controller and removable display. The controller offers a suitable mode for the desired process: from automatic to manual operation, right through to pumping or an evacuation and cleaning function. High-performance suction VACSTAR has an excellent suction performance, with its 22 l/min at a minimum of 2 mbar. Integrated vacuum controller with removable WiCo Depending on the application, you can easily select your operating mode either by using the intuitive operator menu or by remote control. Protects user and environment The VACSTAR system includes a downstream vacuum safety emission condenser (VSE1). This reliably protects laboratory employees and the environment from harmful exhaust air. Technical Data Pump rate max. (50/60Hz) : 1.32 m³/h Pump rate max. (50/60Hz) : 22 l/min Final pressure without gas ballast : 2 mbar Suction levels : 4 Cylinder : 4 Connection diameter suction side : 8 mm Connection diameter pressure side : 8 mm Input pressure : 2 - 1030 mbar Boiling point detection : yes Solvent library : yes Analog speed vacuum control : yes Speed control : Turning knob Speed range : 285 - 1200 rpm Display : TFT Pressure unit / scale : mbar, hPa, mmHg, Torr Vacuum sensor : yes Vacuum sensor type : ceramic Al2O3 Pressure max. for pressure sensor : 1.2 bar Measurement range (absolute) : 1 - 1030 mbar Control range : 1 - 1030 mbar Resolution pressure : 1 mbar Measurement uncertainty : 1 mbar Venting valve : yes Condensate trap : yes Emission condenser : yes Timer : yes
