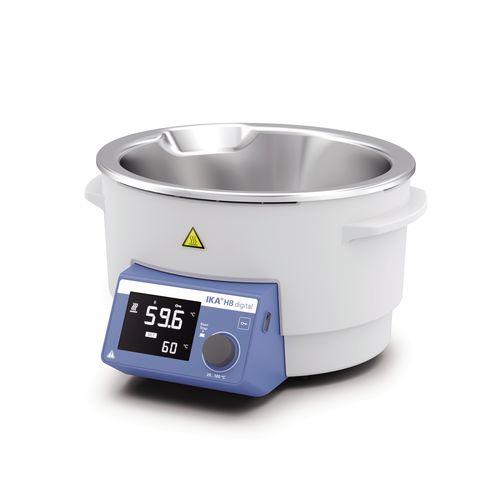

Heating water bath HB digital

heating water bath
heating water bath
heating water bath
heating water bath
heating water bath
Add to favorites
Compare this product


Temperature control
benchtop, compact
Temperature range

180 °C (356 °F)


4 l (1.1 gal)


Compact and ergonomic heating safety bath for all tempering media. 4 l bath volume Max. media temperature: 180 °C Ergonomic handles Key button to lock heating bath temperature Clear, black-and-white display Safety operating modes A, B, C Permanent set-point/ actual temperature display USB interface Technical Data Heat output1400 W Heating temperature rangeroom temp. - 180 °C Heat controlLCD Set temperature resolution1 ±K Controller oscillation (3 l water / 90 °C)1 ±K Absolute deviation/mean (3l water / 90 °C)2 ±K Controller oscillation (3l Silicone oil / 50mPas / 150°C)2 ±K Absolute deviation/mean (3 l Silicone oil / 50mPas/ 150°C)4 ±K Filling volume max.4 l Filling point min. 60 mm Material in contact with mediumstainless steel 1.4404 Fixed safety circuit 190 °C Adjustable safety circuit50 - 190 °C Class designation acc. DIN 12876II Outer diameter257 mm Inner diameter225 mm Outer height190 mm Inner height130 mm Dimensions (W x H x D)330 x 190 x 325 mm Weight3.9 kg Permissible ambient temperature5 - 40 °C Permissible relative humidity80 % Protection class according to DIN EN 60529IP 21 USB interfaceyes Voltage200 - 240 / 100 - 120 V Frequency50/60 Hz Power input1450 W Power input standby3 W
