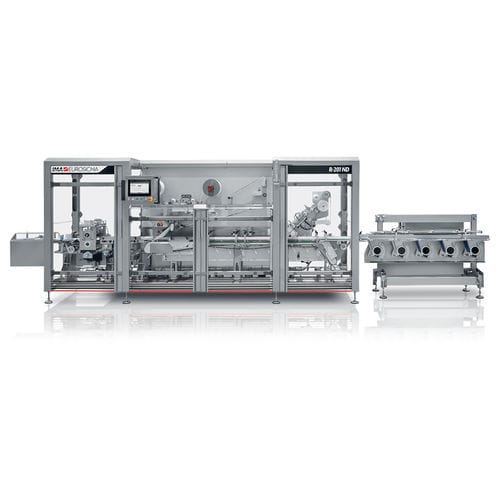

Fully-automatic packaging system R-201 ND

computer-controlledflow-packhorizontal

Overview The R-201 ND flow-wrapper for instant noodles is a mid-range modular packaging machine designed to produce single and multipacks with one or several sachets. The base line accepts plug-in modules to adapt formats from single packs with a single sachet to double and multipacks with multiple sachets on top. The machine integrates a built-in, fully synchronized sachet feeder and runs on a commercial PLC platform. Production capacity reaches up to 200 instant noodle cakes per minute. The hygienic open-frame design features fully inclined surfaces and no hollow bodies to provide full visibility and fast cleaning and maintenance.

Key features

• Fully integrated, synchronized sachet feeder embedded in the wrapping line control system to handle multiple sachets per pack
• Modular plug-in design enabling flexible single to multipack configurations
• Streamlined open-frame structure for quick installation and easy positioning
• Hygienic design with fully inclined surfaces and absence of hollow bodies to prevent residue accumulation and simplify cleaning
• Upgradeable with stacking unit and additional sachet feeders according to pack configuration

Highlights

• Built-in sachet feeder, fully synchronized and embedded
• Evolving modularity for flexible configuration and expansion
• Streamlined frame for quick installation and movement
• Designed for easy cleaning: fully inclined surfaces and no hollow bodies

Multimedia Includes product images, a product video trailer and a dedicated video titled Engineered for Noodles demonstrating machine operation and line configurations.

Technical specifications

• Production speed: up to 200 packs/min (instant noodle cakes)
• Model: R-201 ND
• Product size range: Length 60 - 150 mm; Width 60 - 150 mm; Thickness 20 - 60 mm
• Film reel dimensions: Inner diameter 75 - 79 mm; External diameter up to 380 mm; Reel width 500 mm; Max reel weight 25 kg
• Control: commercial PLC platform with integrated sachet feeder control
• Design: hygienic open-frame with fully inclined surfaces, no hollow bodies for easy cleaning and maintenance
• Expandable: supports additional sachet feeders and stacking unit options for multipack configurations
