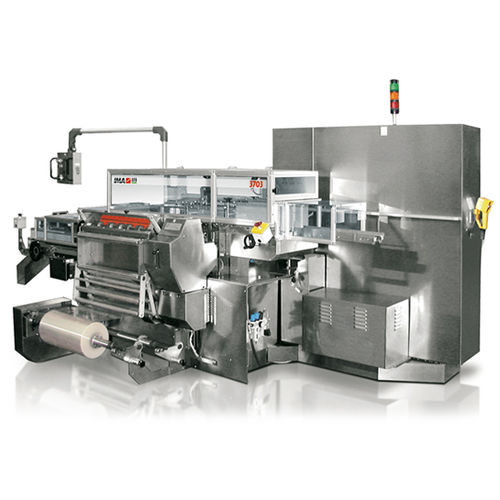

Wraparound packaging system 3703 Series

servo-drivenautomaticfloor-standing

With an output of up to 100 bundles/min, the 3703 can arrange the products wrapping them in one, two or three rows on a single layer. Bundle collation occurs in line with product exit, but outside the wrapping area. Product infeed is managed by lateral belts to avoid product sliding due to high feeding speeds and a driven starwheel in order to turn the incoming products on edge. Final product configuration is achieved by means of a driven collating unit. Changeover by replacement of pre-assembled and pre-adjusted groups is fast and easy, so as to avoid unwanted downtime. Flexible configuration Machine can be supplied with right-hand or left-hand film feeding from product entry. Servo-driven technology All movements are servo driven, including bundle forming. Lubrication Oil-forced circulation by motor-driven pump with safety pressure switch. Wide range of options Countless optional groups can be integrated for specific functions and enhanced performance.
