Automatic packaging system CPV20 Series

automatedhorizontalmodular

Product overview

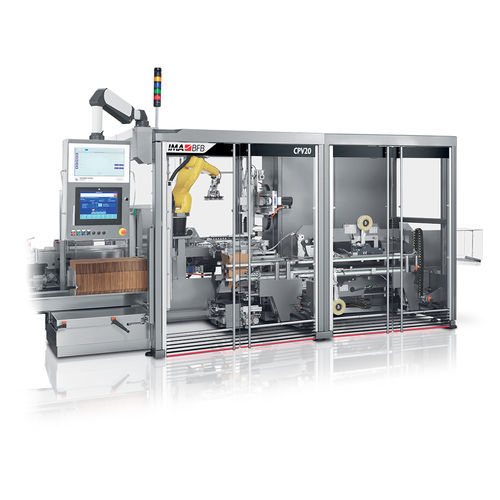

A modular top-loading case packer designed for loose or bundled products. The CPV20 delivers high flexibility at medium-high speed and is engineered for easy cleaning, operator ergonomics and accessibility. It handles various bottle shapes, cartons, bags and tubes and supports integration of track & trace systems for enhanced accuracy and control. Processing capacity up to 20 cases/min.

Highlights

• Top-loading case packer for loose or bundled products.
• Cantilever, ergonomic design for full accessibility and simplified cleaning.
• Modular concept allows adding special modules without interfering with the product loading area (booklet feeders, inspection cameras, etc.).
• Automatic size changeover available for fast and reliable part replacement and adjustment.
• Horizontal case magazine with low positioning for extended autonomy.
• Case feeding by bottom-driven toothed belts for reliable transfer to the picking area.
• Layer introduction via a driven movable hopper that follows product collation into the case.
• Case closing with hot-melt glue or adhesive tape; reels positioned for quick replacement.
• Can be integrated with palletizers (RP2 — two pallet stations; RP4 — four pallet stations) for automatic pallet handling and increased autonomy.

Options & modules

• Booklet feeder option.
• Inspection camera systems and other vision/inspection modules.
• Track & trace system integration.
• Automatic size changeover (optional).
• Palletizer integration (CPV20-RP2 and CPV20-RP4 versions).

Technical data (table)
CPV20 TECHNICAL DATA
Product dimensions (A / B / C): Min (mm) 150 / 140 / 90
Product dimensions (A / B / C): Max (mm) 520 / 400 / 300
Max speed: 20 cases/min.

Technical specifications

• Product dimensions (A x B x C) — Min: 150 x 140 x 90 mm; Max: 520 x 400 x 300 mm.
• Maximum speed: 20 cases/min.
• Machine type: modular top-loading case packer for loose or bundled products.
• Product handling: loose or bundled bottles, single cartons, bags and tubes (wide variety of shapes).
• Case magazine: horizontal magazine with low positioning for greater autonomy; bottom-driven toothed belts for case feeding.
• Layer introduction: driven movable hopper to follow product collation into the case.
• Case closing: hot-melt glue or adhesive tape (reels in easy-access area for rapid replacement).
• Automatic size changeover: available for quick and reliable parts replacement and adjustment.
• Modularity: can house sub-assemblies (booklet feeders, inspection cameras) as separate modules to avoid interference with loading area.
• Palletizer integration: CPV20-RP2 (two pallet stations with automatic replacement of full pallets) and CPV20-RP4 (four pallet stations for greater autonomy).
• Designed for operator ergonomics, easy cleaning and accessibility.
• Primary target industries: pharmaceutical and cosmetic industries.
• Production plant referenced on page: IMA BFB.
