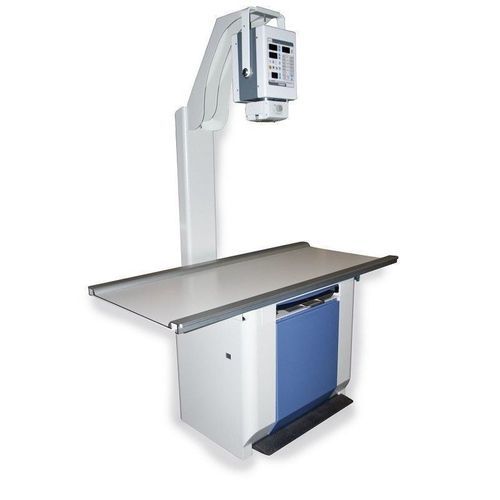

Veterinary radiography X-ray generator IMED MDR
for multipurpose radiographyequipment-mountedwith power supply

Veterinary radiography X-ray generator - IMED MDR - Imedsys - for multipurpose radiography / equipment-mounted / with power supply
Veterinary radiography X-ray generator - IMED MDR - Imedsys - for multipurpose radiography / equipment-mounted / with power supply
Add to favorites
Compare this product

Characteristics

Type of imagery
for multipurpose radiography, for veterinary radiography
Ergonomic design
equipment-mounted
Options
with power supply
Output power

Min.: 1.6 kW
(2.2 hp)

Max.: 5 kW
(6.8 hp)

Description

Mixed Radiography Tables
IMED MDR
  • Compatibility: analog cassettes, CR, and DR
  • 4-way floating tabletop: scratch-resistant (162 x 75 cm)
  • Removable X-ray grid: optional
  • Compatibility: various portable generators
  • Dimensions: 162 x 96 x 210 cm
IMED MDR Small
  • Compatibility: analog cassettes, CR, and DR
  • 4-way floating tabletop: scratch-resistant (125 or 149 x 64 cm)
  • Removable X-ray grid: optional
  • Compatibility: various portable generators
  • Dimensions: 125/149 x 86 x 200 cm


Compatible Portable GeneratorsIMED 20
  • Type: wired, lightweight (9.8 kg), robust
  • Features: 4 kV/mAs memory settings, integrated laser, LED and laser operable via switch
  • Technical details:
  • Tube: 100 kV / 20 mA
  • mAs range: 0.3 – 50 mAs (22 steps)
  • Max power: 1.6 kW at 80 kV
  • Focal spot: 1.2 mm
IMED 20BT
  • Type: battery-powered, 11.4 kg, up to 286 exposures per charge
  • Features: 15 kV/mAs memory settings, LED and laser operable via switch
  • Technical details:
  • Tube: 100 kV / 20 mA
  • mAs range: 0.4 – 50 mAs (32 steps)
  • Max power: 1.6 kW at 80 kV
  • Focal spot: 1.2 mm
IMED 40
  • Type: wired, constant output, 12.8 kg
  • Features: 8 kV/mAs memory settings, LED and laser operable via switch
  • Technical details:
  • Tube: 100 kV / 35 mA
  • mAs range: 0.4 – 100 mAs (25 steps)
  • Max power: 2.4 kW at 80 kV
  • Focal spot: 1.2 mm
IMED 40BT
  • Type: battery-powered, 14.8 kg, up to 173 exposures per charge
  • Features: 21 kV/mAs memory settings, LED and laser operable via switch
  • Technical details:
  • Tube: 100 kV / 35 mA
  • mAs range: 0.4 – 100 mAs (35 steps)
  • Max power: 2.4 kW at 80 kV
  • Focal spot: 1.2 mm
IMED 60
  • Type: wired, 14.6 kg, constant output with 25 mA additional current
  • Features: 8 kV/mAs memory settings, LED and laser operable via switch
  • Technical details:
  • Tube: 100 kV / 60 mA
  • mAs range: 0.4 – 100 mAs (25 steps)
  • Max power: 3.2 kW at 80 kV
  • Focal spot: 2.0 mm
IMED 100 (VET)
  • Type: most powerful model in the series, 19.6 kg
  • Features: 750 kV/mAs memory settings, LED and laser operable via switch
  • Technical details:
  • Tube: 110 kV / 100 mA
  • mAs range: 0.1 – 100 mAs (40 steps)
  • Max power: 5 kW at 75 kV
  • Focal spot: 1.5 mm
