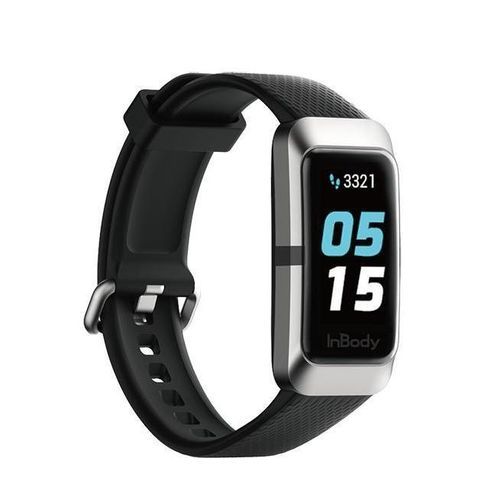

Electronic body composition analyzer BAND3

bio-impedancemetryfor humanspocket

Product Overview
Wrist-worn wearable for continuous body composition and daily health monitoring. InBodyBAND3 provides 24/7 tracking including an on-wrist InBody test, step and activity logging, heart-rate and stress monitoring, sleep analysis and smartphone notifications. Designed for use in fitness, corporate-wellness and clinical support workflows through app integration and regular data export.

Main Features

• InBody Test - On-wrist body composition check to complement scale-based measurements.
• Steps - Count steps, distance, active time and calories burned.
• EZ Training - Specialized algorithm supporting 12 exercise modes for guided tracking.
• Stress - PPG-based stress check and tracking.
• Exercise Record - Time, distance, maximum heart rate, average heart rate, calories and steps per session.
• Sleep Analysis - Nightly monitoring with detailed daily, weekly and monthly summaries.
• Heart Rate - Continuous heart-rate monitoring and event logging.
• Notifications - Step alarm, goal alarm and wear reminder.
• Weather - Daily min/max temperature, hourly forecast and average temperature.
• Call/Messages/Social - Incoming call, message and social media notifications.
• Music Control - Play and pause music from the wrist.
• Stopwatch, Timer, Alarm - Stopwatch up to 10 hrs, timer up to 99 min, up to 10 alarms.

Specifications

• Information Displayed: Walking time, calories burned, walking distance, notifications, battery level, sleep time, exercise monitoring, EZ Training (check via app), weather, music control, alarm and timer, stress measurement (check via app).
• Colors: Midnight Black, Dark Plum, Deep Blue, Sage Green.
• Dimensions (WxLxH): 20.6 mm x 43.6 mm x 11.8 mm.
• Measurement Current: 200 mA or less.
• Weight Range: 50–300 kg.
• Wrist Circumference: 11.5–18.5 cm.
• Modulation Method: GFSK.
• Operating Environment: 0–40°C, 30–75% RH, 70–106 kPa.
• Storage and Transportation Environment: -20–60°C, 10–80% RH, 50–106 kPa (no condensation).
• Battery Charging Time: Approximately 1 hour 30 minutes.
• Battery Usage Time: About 4 days.
• Input Power: Operating voltage: DC 3.8 V / Charging voltage: DC 5.0 V.
