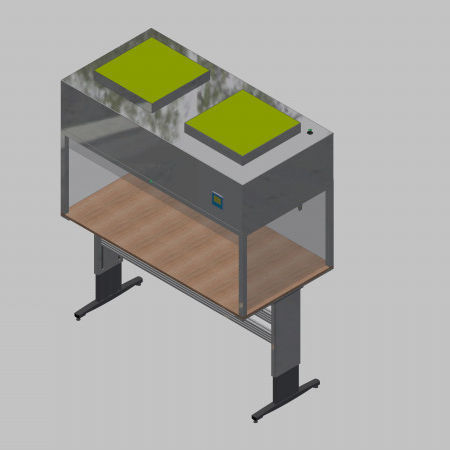

Table laminar flow module 58155

vertical

The Laminar Flow Silent-Premium is ideally suited to delimit work areas in accordance with clean room requirements. The unit is used to filter out particles or germs from the ambient air and thus guarantees a clean room atmosphere. Thanks to the modular system concept, the device can be used flexibly. The laminar flow unit works on the principle of laminar displacement flow with vertical air flow. It meets the requirements of cleanliness class 5 according to DIN ISO 14644-1, this corresponds to cleanliness class 100 according to US-FED-STD 209e. All systems from the VCF series can be manufactured individually according to customer requirements. As a result, we are not bound to any fixed dimensions and expansion requests. This modular series gives the user the following significant advantages at no additional cost. Function / construction Prefilter The ambient air is pre-filtered using an easily exchangeable pre-filter of filter class G4. The pre-filter is designed for large volume flows and long filter service lives. The 2nd filter stages increases the service life of the main filter Fine filter The particles are separated using a high-performance H14 class particle filter. The degree of separation of this filter is 99.995% according to EN 1822. The maintenance-friendly design of the device makes it easy and inexpensive to replace the filter directly at the installation site. Filter contamination display with visualized bar chart 0 - 100%
