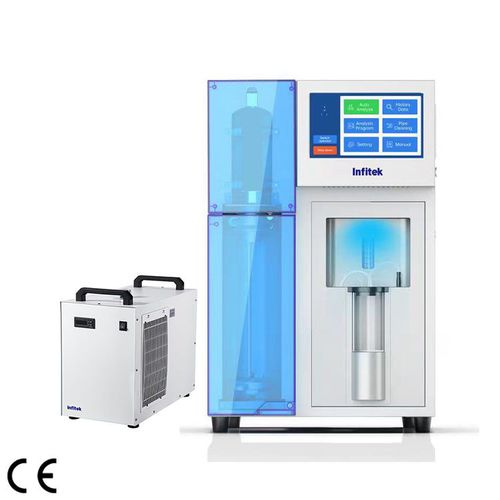

Automatic distillation system KJA-9870A

Kjeldahl

Description The control system adopts a 10 inch color touch screen to uniformly control the nitrogen analyzer host and refrigeration system, without the need for multiple switch settings, which is convenient, simple, and safe. The standard coolingsystem can save a lot of water resources for users, and is energy-saving, environmentally friendly, and has stable analysis data. Three-level authority management, electronic records, electronic labels, and operation traceability inquiry system The system automatically shuts down after 60 minutes of no operation, which is energy-saving, safe and secure. The instrument has a built-in protein coefficient query table for users to read, query and participate in system calculations. When the coefficient=1, the analysis result is “nitrogen content”. When the coefficient>1, the analysis result is automatically converted to “protein content” and displayed, stored and printed. The titration system uses R, G, and B coaxial light sources and sensors, with a wide color adaptability range and high accuracy. The R, G, and B three-color light intensity automatic adjustment system is suitable for the analysis of samples with different concentrations. The titration speed can be set arbitrarily from 0.05ml/second to 1.0ml/second, and the minimum titration volume can reach 0.2μL/step. The German ILS 25mL injection needle and 0.6mm lead linear motor form a high-precision titration system. The internal standard of titrant concentration eliminates the systematic error caused by the difference between human and instrument judgment, and is highly precise, convenient and fast.
