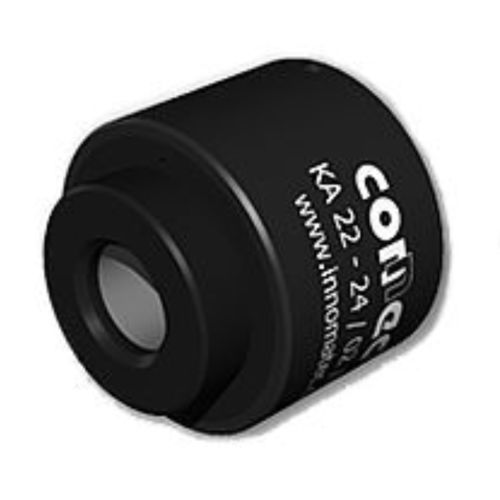

Medical device connector KA

rubberflexibleautomatic

The innomatec connec ® KA type quick connector system seals tubes, connection pieces, hoses and all types of cylindrical bodies and connects them to the desired control system.. Oval, rough and cast surfaces with large sealing surface tolerance are sealed radially. The innomatec connec ® Quick Connection System Type KA can be loaded with a sample manually or with an automatic tool. The innomatec connec ® KA type quick connector system can be attached/presented to the test piece manually or with an automatic tool. The quick connector is pneumatically activated with control air. A flexible rubber seal creates the seal. The system is filled or sealed via the test connection. After testing has been completed the control connection is vented, the seal de-pressurised and the connection can be removed/taken away. Depending on the diameter, working pressure or condition of the surface (oily etc.) the connection needs to be fitted with a slide barrier. The innomatec connec ® quick connector system has excellent sealing properties ('helium-tight'). The rubber seal product life is designed to be suitable for series production. Rubber seals are very easy to change without tools. There are a number of special designs of the connection for specific applications with stroke limitation, sliding barriers, support hulls or special seals for specific environmental conditions. The dimensions of the connection can be adapted to the task for specific cases. Also for individual pieces. We look forward to your enquiry. Please use our checklist to do this.
