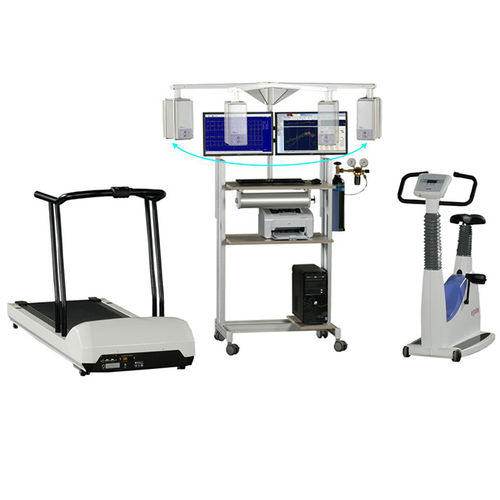

An updated version of our CardioPC/E system, which can measure and evaluate the volumes of O2 and CO2 gases during the whole stress test procedure with the help of its gas analyser, over its features supported by its conventional ECG signal based stress test system. It can be used also for clinical quality spirometry.
Exercise mode:
Bicycle or treadmill for patient load
Selectable and user-definable exercise testing protocols
Progressive incremental bicycle exercise protocols
Step and Ramp type protocols
Constant work rate protocol
Multistage exercise protocol with a pseudo-steady state at each level
Discontinuous protocol
12 channel online ECG signal processing
Automatic blood pressure measurements
Online 12 channel ECG ST segment and arrhythmia analysis
Exercise display: load level, HR, blood-pressure, RPP, revolutions, ES, SVES, VES, QT interval
Full disclosure display and storage for the 12 channels
Ergospirometer mode:
Extremely small and light patient flow circuit
PinkFlow flow meter without any moving parts and electrical connection
Single-use or disinfectable patient flow circuit
Automatic calibration and self-test
Measurements:
Breath by breath gas analysis
Mixing chamber gas analysis (optional)
FVC (Forced Vital Capacity) measurement
IVC (Inspiratory Vital Capacity) measurement
MVV (Maximal Voluntary Ventilation) measurement
Wasserman’s 9 basic graphs
17 types of VO2 graphs
