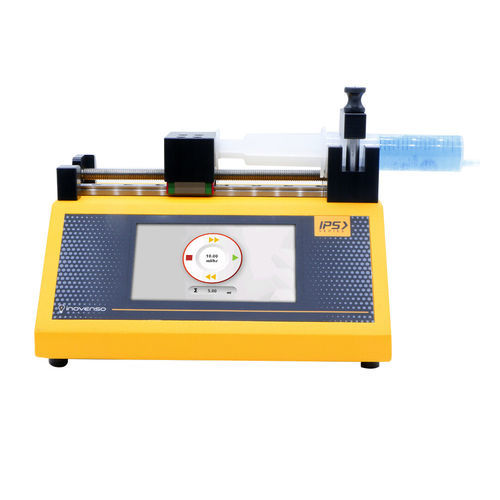

Veterinary syringe pump IPS-12
chromatographyfor research1-channel

veterinary syringe pump
veterinary syringe pump
veterinary syringe pump
veterinary syringe pump
Add to favorites
Compare this product


Characteristics

Applications
veterinary, chromatography, for research
Number of channels
1-channel
Other characteristics
with touch screen, programmable

Description

IPS-12 Syringe Pump | Infuse Mode IPS-series syringe pumps provides accurate and precise delivery of the desired amount of fluids, can be used in the types of applications that require smooth, non-pulsatile flow that is extremely accurate such as Electrospinning, Electrospraying, Dispensing, organ/tissue perfusion, Microfluidic applications… The flow rate can be adjusted from the easy-to-use touch screen panel even during the process. The model: IPS 12 is a programmable single channel pump that provides a wide flow rate range (1,17 pl/min – 75,945 ml/min), the lowest flow rate can be reached using a Hamilton 0,5 µl, the maximum can be reached using 140 ml Monoject Syringe. • 4,3” Resistive Touch TFT LCD screen • Microcontroller software • User friendly interface • High precise pumping • Adjustable flow rate even during process 02 Technical Specs MODEL - IPS12 MODE - Infuse only SYRINGES - Capacity - 1 Type - Glass, plastic, steel Min Size - Hamilton 0,5 µl (ID:0,103mm) Max Size - Monoject 140 ml (ID:38mm) FLOW RATE - Min - 1,17 pl/min (Hamilton 0,5 µl) Max - 75,945 ml/min (140 ml Monoject Syringe) MOTOR TYPE - Stepper Motor MOTOR DRIVE CONTROLLER - Microcontroller with Microstep Drive STEP RESOLUTION (Travel/Microstep) - 223,2 nm/µstep STEP RATE - Min - 10 sec/µstep Max - 200 µsec/µstep LINEAR SPEED RATE (PUSHER TRAVEL RATE) - Min - 1,34 µm/min Max - 66,96 mm/min LINEAR FORCE - 30 kg for each syringe CONNECTORS - Wi-fi (optional) RECIPE SAVE-RECALL - No POWER SUPPLY - 12 VDC 1A (110-240 VAC adaptor included) DIMENSIONS - W:200 L:170 H:137 mm WEIGHT - 2.1 kg ENVIRONMENTAL SPECIFICATIONS - Operating Temperature - Between -10 and 50 C Storage Temperature - Between -30 and 85 C
