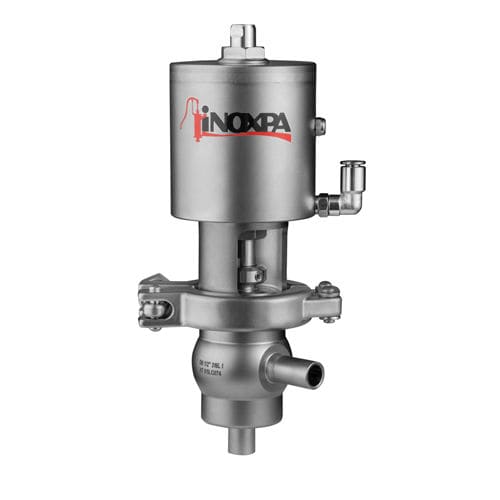

Shut-off valve INNOVA Mini N

for the pharmaceutical industrypneumatic

The INNOVA Mini N valve is a shut-off single seat valve suitable for any use that the pharmaceutical, chemical, food or beverage industries could be required. Design and features Hygienic design according to EHEDG. Gasket with specfic profile guarantees reliability under adverse working conditions. Hygienic design of the gasket ensures optimal cleaning. Single-acting pneumatic actuator. Normally closed valve (NC) in its standard version. The valve can be changes to normally open (NO) by simply reversing the position of the pneumatic actuator. Easy disassembly of internal parts by loosening a clamp fastener. Open lantern allows visual inspection of shaft sealing. Materials Parts in contact with the product 1.4404 (AISI 316L) Other steel parts 1.4301 (AISI 304) Seals in contact with the product EPDM Surface finish Internal Brigh polish Ra ≤ 0,8 μm External Matt Options Double-acting pneumatic actuator. Seals: FPM and HNBR. Other connections: male and clamp. External position sensors. Surface finish Ra ≤ 0,5 μm.
