Rotary agitator

for the pharmaceutical industryfor the food industryconical

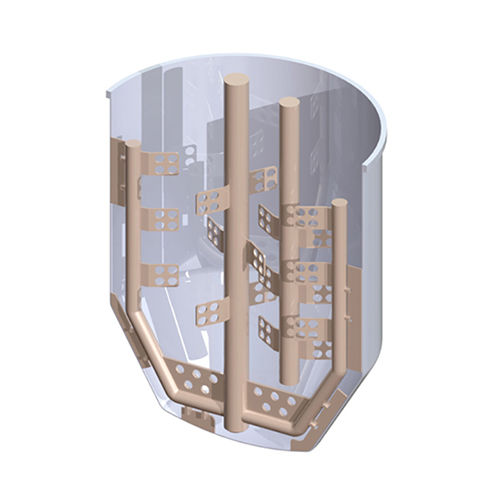

Anchor-type agitators are principally designed to mix highly viscous products and non-Newtonian fluids, i.e., they lack a certain degree of viscosity because it depends on the temperature. These agitators can be mounted in tanks with rounded or conical bottoms. The different types of anchor available in the INOXPA range are presented below. Option 01: U-shaped anchor Option 02: Anchor with radial flow deflector Option 03: U-shaped anchor with blade Option 04: Helical ribbon-type anchor Option 05: Loop-type anchor Option 06: Helical loop-type anchor Propeller-type agitators can be used for suspension, dispersion and homogenization processes with low-viscosity products, where it is important to operate at medium and high speeds. These agitators can be mounted in tanks with rounded or conical bottoms. Propellers are axial flow agitators, ideal for solid-in-liquid solutions or suspensions because they prevent solid particles from depositing on the bottom of the tank. They can also be used for mixing liquids. Depending on the application, deflectors or flow deflector baffles can also be mounted in the tank. All propeller-type agitators can be accompanied by an anchor-type agitator. Marine propeller Gamma propeller Lineflux propeller Blade agitators can be used in suspension, dispersion and homogenization processes with low- and medium-viscosity products. These agitators can be mounted in tanks with rounded or conical bottoms. They operate at a low-moderate mixing speed with a peripheral velocity of 2 to 7 m/s.
