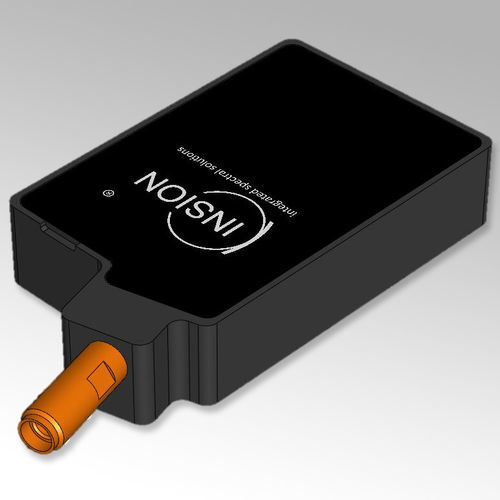

UV-vis spectrometer medicalwith USB port
Add to favorites
Compare this product
Characteristics
- Type
- UV-vis
- Applications
- medical
- Other characteristics
- with USB port
- Wavelength
Min.: 330 nm
Max.: 1,050 nm
- Length
54 mm
(2.1 in)- Width
32 mm
(1.3 in)- Height
9.1 mm
(0.4 in)- Weight
50 g
(1.8 oz)
Description
Insion Micro Spectrometer Success Factors: Stability and Robustness
Technical Data
Fiber:Ø 300 / 330 µm; NA = 0.22
Spectral Resolution: 17 dB with GG495 at 470 nm (30 dB using SC30)
Spectral Accuracy:2 nm (typ. 1 nm)
Sensitivity:> 65 E12 cts x nm / Ws at 650 nm
Signal to Noise Ratio:≥ 5000 at Tintergration = 2 ms
Dynamic Range:> 5.000
Additional Data
Fiber Length/Finishing:450mm; +50/- 0mm; SMA
Detector Array:CMOS
Electronics:16 bit; UART;
Storage Temperature:- 40°C to +60°C
Operating Temperature:0°C to +40°C
