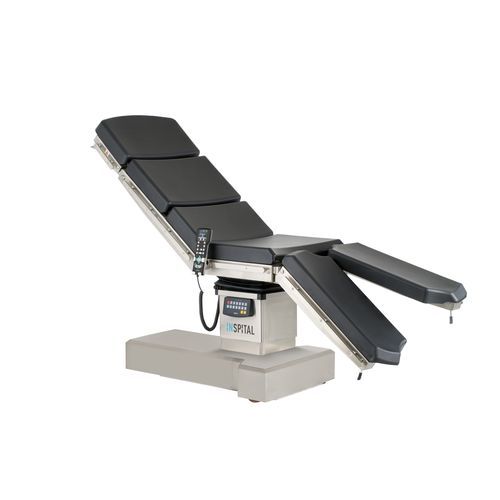

Universal operating table OT80.20 NOVUS
electro-hydraulicradiolucent

universal operating table
universal operating table
universal operating table
universal operating table
Add to favorites
Compare this product


Characteristics

Applications
universal
Operation
electro-hydraulic
Features
radiolucent
Length

2,200 mm
(86.6 in)

Width

560 mm
(22 in)

Height

Min.: 595 mm
(23 in)

Max.: 1,035 mm
(41 in)

Maximum load

360 kg
(793.66 lb)

Mattress thickness

70 mm
(2.8 in)

Description

Inspital operating tables are designed to meet all special requirements of operating theaters with its powerful and stable electro-hydraulic systems. OT80.20 Novus has wide range of accessories makes it very flexible for different surgical disciplines. Hand Control Unit with Color LCD Display Digital Screen Battery level monitoring by remote control unit Program memory for 3 positions Key lock Collision protection feature Ideal access in the surgical area Maximum surgical area visibility with its kidney elevator, integrated on the table and adjustable up to 150° (70 mm). Sliding feature X-ray transparent in a wide range without disturbing the sterile environment by its longitudinal sliding table top feature of 300 mm. Functional design Easy to use modular design for various surgical disciplines. Durable and hygienic 316 grade stainless steel body. Accessory attachment Stainless steel side rails integrated on both sides of the table allow accessories to be attached without removing existing accessories. Various mattress options Table top made of compact material with high X-ray transparency, allowing for high quality imaging. Visco or polyurethane mattress options that ensure patient comfort by adopting to body shape, preventing pressure sores. Ideal access for C-arms Full access to all table areas and radiolucent table top allows high imaging. The low table base allows easy access and approach of C-arms and surgical microscopes. Optional carbon fibre extension plate for 360° imaging available. T-base The T-base provides ideal access for the surgical team and OR furniture, with hidden anti-static, medical castors.
