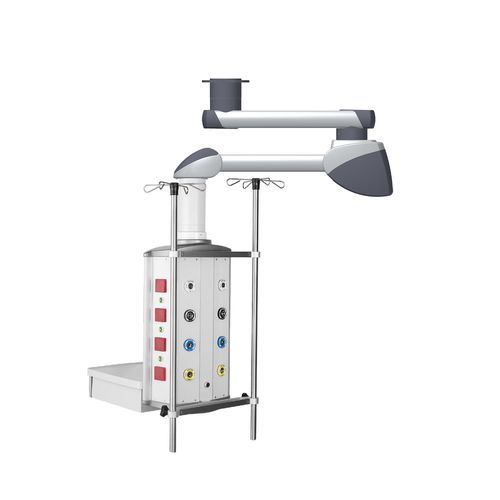

Articulated support arm FX40.25M

height-adjustablepositioningswivel

Overview
The Double Motorized Pendant FX40.25M is a ceiling-mounted medical pendant system with motorized adjustment for precise transport, positioning and support of medical equipment in demanding clinical environments. It is designed for operating rooms and intensive care units to optimize workflows, enhance patient safety and maintain hygiene standards.

Key features

• Motorized functionality enabling smooth, precise movement and height adjustment
• Ceiling-mounted design for space optimization and a tidy working environment
• Ergonomic movable arms with adjustable height and rotation for precise positioning and easy access
• Integrated supply management with medical gas connections and power outlets
• Modular design to allow flexible configuration and future expansions
• Hygiene-oriented design that reduces cable clutter and facilitates cleaning

Technical specifications

• Model: FX40.25M
• Department: OR
• Arm Type: Double Motorized
• Arm Length: 800/1000 mm
• Total length (mm): 1800
• Length up to (mm): 2600
• Load Capacity (kg): 110
• Load Capacity with E-Brake (kg): 250
• Vertical Load (N): 2195
• Load Capacity (lbs): 330
• Brake System: Pneumatic Brake
• Magnetic E-Brake: Yes
• Rotation angle (ceiling): 340°
• Intermediate Bearing rotation: 340°
• Rotation Angle (telescopic tube): 340°
• Height Adjustment: 820 mm (20° upward, 40° downward movement) — the upper limit can be restricted
• Electrical protection class (IEC 60601-1): Class 1
• Medical device classification (93/42 EU & 2017/745 EU): Class 1
• IP classification: IP 20
