portable ultrasound system / for gynecological and obstetric ultrasound imaging / for urology ultrasound imaging / for abdominal and pelvic ultrasound imaging
SiMPLi GP

{{requestButtons}}

Characteristics

  • Ergonomics:

    portable

  • Application:

    for gynecological and obstetric ultrasound imaging, for urology ultrasound imaging, for abdominal and pelvic ultrasound imaging

  • Options:

    B/W, all-in-one probe

Description

Point-of-Care USB Ultrasound for General Purpose Imaging

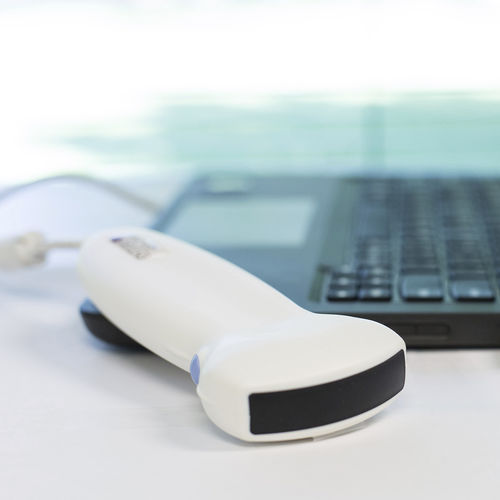

Ready for user-friendly ultrasound at the patient bedside? Simply connect the USB probe cable directly to your Windows laptop or tablet and you instantly have a lightweight, handheld and portable ultrasound imaging system for all of your point-of-care imaging needs.

SiMPLiTM Series Point-of-Care USB Ultrasound
General Purpose, Abdominal Imaging
Applications
eFAST
Abdominal
Urology
Fetal
OB/GYN
MSK
Pelvis

USB Ultrasound Probe Specifications
Model NameGP-C01, Medical
Model Number99-7903
Depth Range1-21 cm
FocusDynamic over full depth range
Bandwidth3.5-7.5 MHz
Scan Angle60°
Patient Contact49 mm
CableUSB 2.0, 2 meter (5 meter opt.)
Physical Dimensions150 mm x 62 mm
Weight110 grams
Imaging Features2D, curved array form factor, color flow imaging, lightweight transducer with flexible cable
System RequirementsOS: Windows 7, 8, 10
Processor / RAM: 2 GHz / 4 GB
