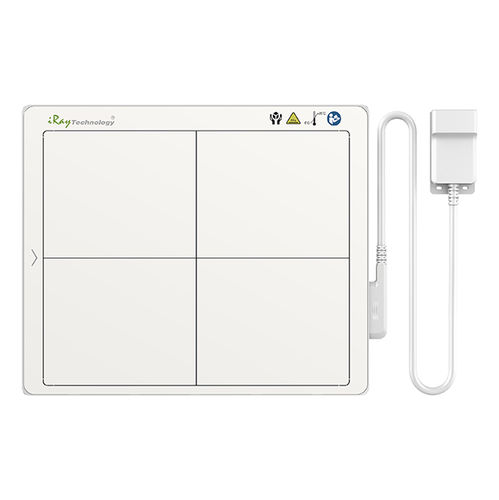

Cephalometric radiography flat panel detector Venu 1012VD

10 x 12

It features a 125 μm pixel pitch with direct deposition CsI and provides excellent image quality for single-shot cephalometric imaging. Features 25×30 cm² imaging area 125 μm pixel pitch, with 16 bit ADC for more image details Direct deposition CsI for better image quality with lower dose Highly reliable, flexible tether Low dose, one-shot imaging with pre-view in 3s Detector Technology Amorphous Silicon Scintillator Csl Pixel Pitch (pm) 125 Pixel Matrix 2000x2400 Active Area (mm2) 250x300 ADC (bit) 16 Frame Rate (fps) N/A Data/Signal Interface GigE Trigger Mode Software Spatial Resolution (Ip/mm) 4 Operating Temperature (°C) 5-35 Storage & Transport Temperature with Package (°C) -10-55 Operating Humidity (% RH) 30-80 (Non-Condensing) Storage & Transport Humidity with Package (% RH) 10-90 (Non-Condensing) Dimensions (mm) 285 x 340x 15 Weight (kg) <2.5 DC Power Input 24V Default Power Dissipation (W) 18
