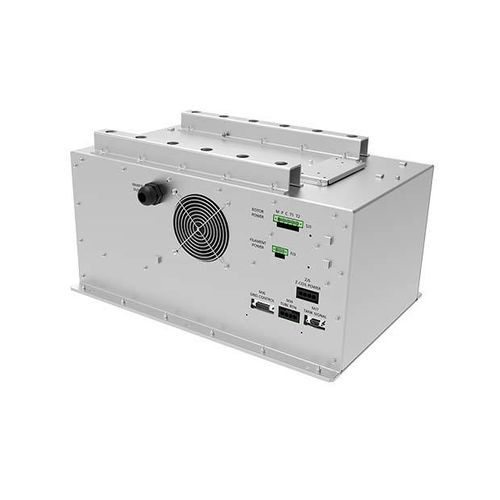

Computerized tomography X-ray generator Pyxis 80CT

equipment-mountedwith power supply

Product overview
Pyxis 80CT is a medical CT high-voltage generator engineered for gantry-mounted CT systems. The two-box compact architecture suits rotating gantries and delivers 80 kW with a high duty cycle to meet clinical CT scanning demands. Its modular layout supports X- and Z-directional dynamic focal spot (DFS) configurations and simplifies integration with bipolar CT tube platforms. Tube database management and intelligent filament calibration facilitate commissioning and maintenance.

Features

• Two-box compact design for gantry mounting; supports gantry rotation up to 151 RPM
• Oil-tank cooling for enhanced heat dissipation and operational reliability
• Full digital programmable starter for precise anode control
• Automatic filament calibration and intelligent filament management
• Grid control and Z-directional deflection (DFS) options
• Compatible with industry-standard bipolar CT tubes and common tube models
• Modular configuration for flexible system layouts and serviceability
• Multi-level arc detection for tube protection
• Tube current modulation support for imaging control

Technical specifications

• Rated power: 80 kW
• Structure: two-box compact architecture for rotating gantry mounting
• Maximum gantry rotation speed supported: up to 151 RPM
• Cooling: oil-tank design
• Starter: full digital programmable starter
• Filament control: automatic calibration and intelligent management
• Deflection support: grid control and Z-deflection (optional)
• DFS support: flexible support for X- and Z-directional DFS
• Tube compatibility: supports a wide range of bipolar CT tubes; drives popular bipolar tube models
• Management: integrated tube database
• Protection: multi-level arc detection
• Imaging control: tube current modulation
• Design: modular for flexible configurations and easier service
