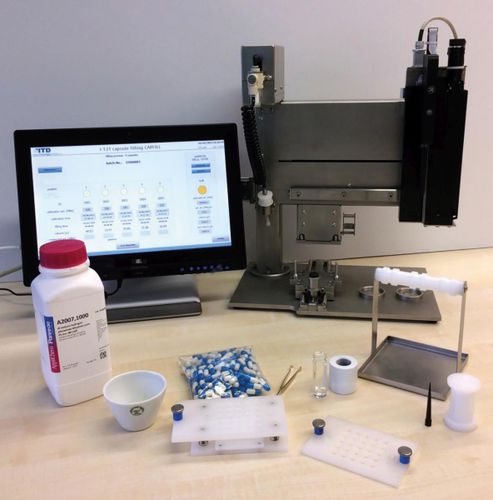

Capsule filling machine Kapselabfüllung

Hot Cell, Glove Box and Auxiliary Equipment Dedicated for the production of 131I-capsules with the CapFill dispensing unit The unit for 131I-capsules production consists of the following hot cells, boxes and auxiliary equipment: Hot cell (for CapFill gelatine capsule loading) Glove box (for the inactive preparation work) In-cell equipment (for gelatine capsule loading) Hot Cell Dedicated for gelatine capsule loading in the iodine-therapy capsule production. Supporting frame: robust welded construction of stable hollow steel squares for mounting the lead shielding and the inner cell box Covering on all sides with powder-coated steel sheets All side lead shielding: 50 mm Pb Vertically movable rear shielding door with electric driving unit and two hand safety operation or swing door on the operator side Hermetically closed inner cell box made of stainless steel Dimensions: (w x h x d): 1000 x 1000 x 800 mm Bottom port for input active material Bottom airlock for output of active material Air lock on the left side wall connected to the glove box with tray and pull-out rail Lead-glass window in the stationary front wall, dimensions (w x h x d): 300 x 300 x 115 mm Two manipulators, stainless steel shaft, diameter ½“ HEPA filter unit combined with charcoal filter for the in-air and for the exhaust-air Glove Box For inactive preparation work. Connected to the therapeutic– capsule production-hot cell. Hermetically closable box Made of 20mm acrylic glass or of stainless steel Dimensions approx. (w x h x d): 700 x 1000 x 600/700mm Front side with removable and airtight acrylic glass panel, with two glove ports and two gloves
